MOWER DECKS
7-20 Z580/Z593/Z595 Diesel Service Manual
7

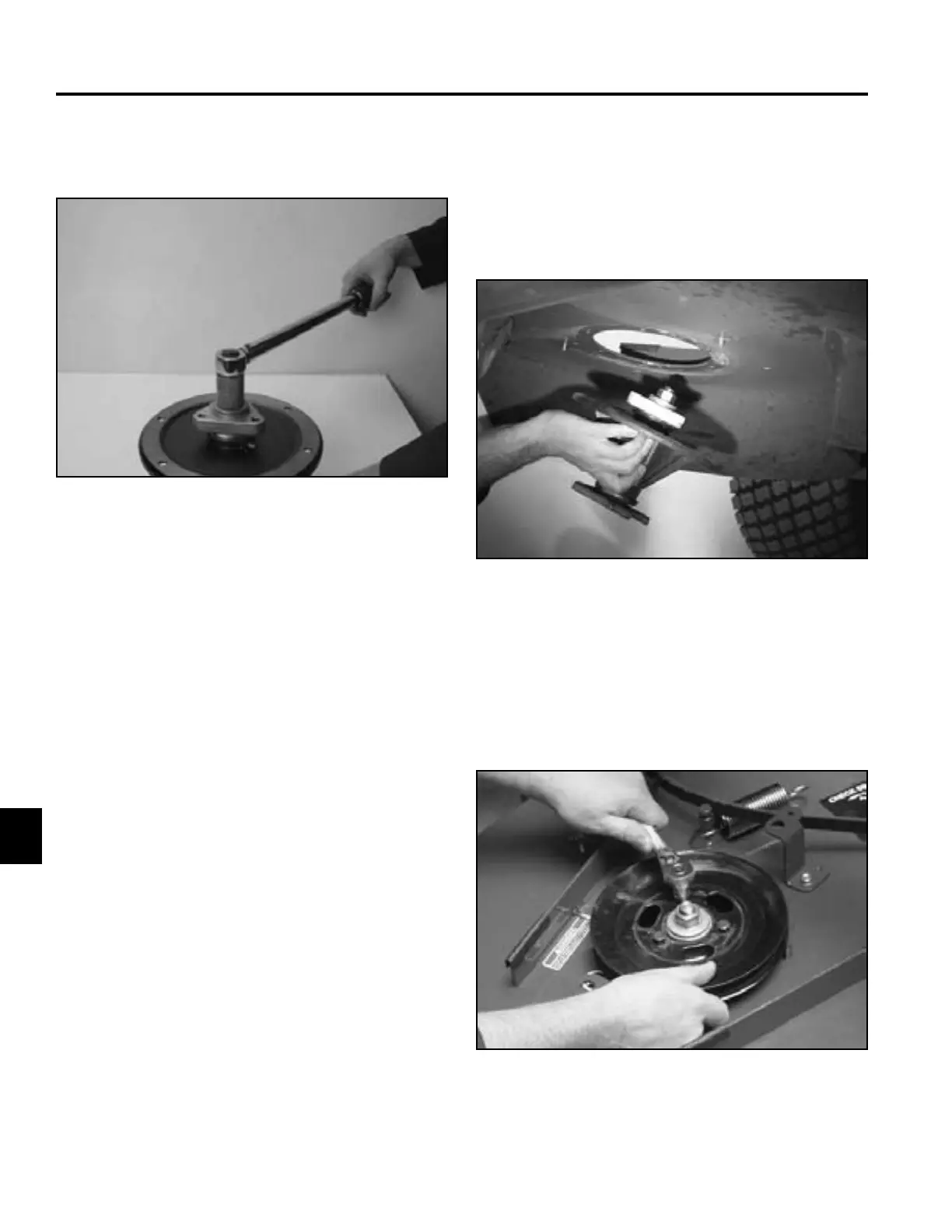

Mower Spindle Installation
1. 72” mower decks: Position the spindle assembly
into the mower deck. Install the 6 self-tapping bolts
securing the spindle assembly to the mower deck
(Fig. 760).
Fig 760 CLR DSC-2666
2. 72” mower decks: Install the mower blade onto the
spindle assembly.
3. 72” mower decks: Install 3 bolts retaining the
pulley to the spindle hub (Fig. 761).
Fig 761 CLR DSC-2662
32. Grease the spindle assembly using a grease gun
with #2 grease.
31. Torque the top nut to 100 to 120 ft-lbs. (135.58 to
162.7 Nm) (Fig. 759).
Fig 759 CLR DSC-2709
