HYDRAULIC SYSTEM
4-46 Z580/Z593/Z595 Diesel Service Manual
4

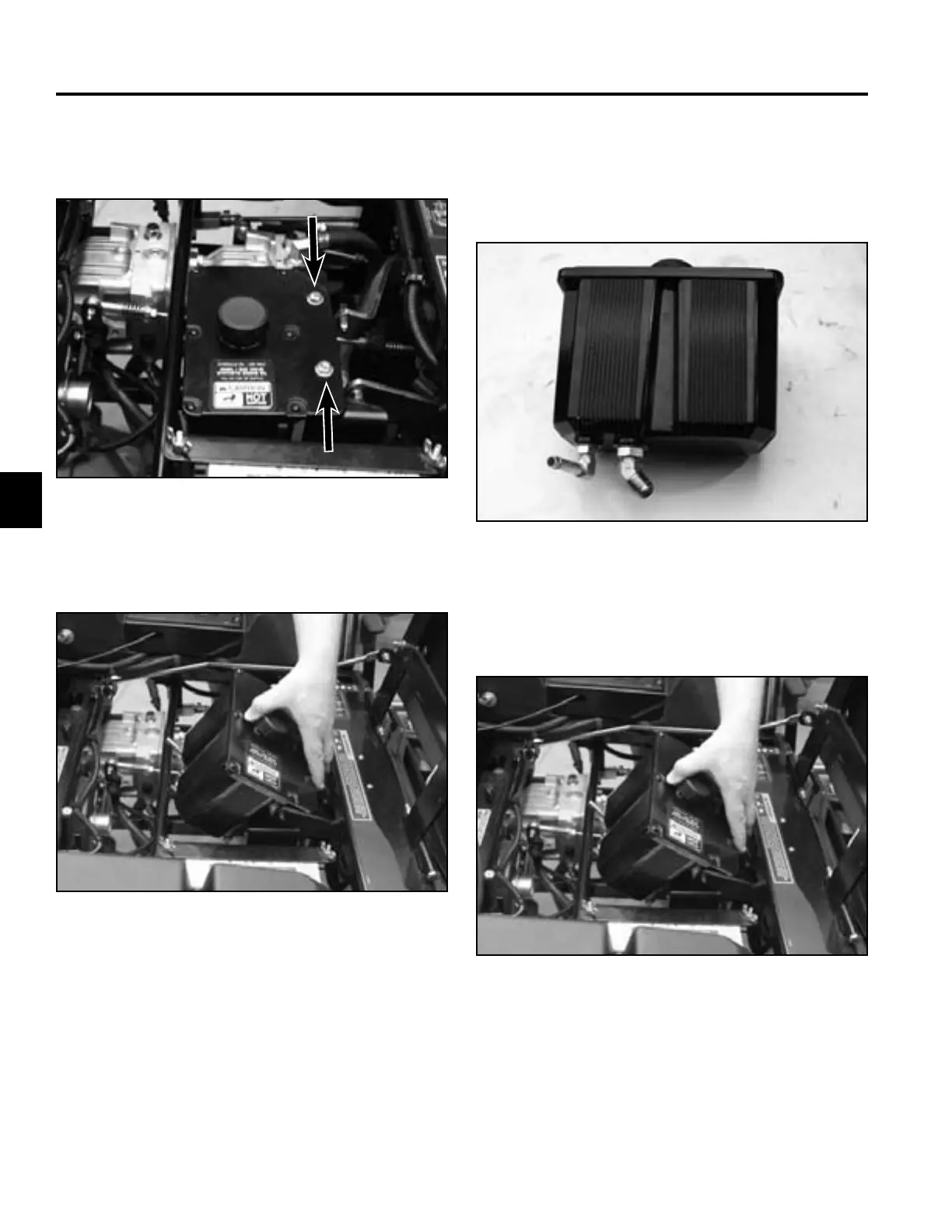

Hydraulic Reservoir Tank Installation
12. Remove the 2 bolts, washers and nuts securing the
reservoir to the hydraulic tank bracket (Fig. 389).
1. Transfer the 2 hydraulic tank fi ttings to the new
hydraulic reservoir tank (Fig. 391).
Fig 389 PICT-3409
Fig 391 PICT-3416
2. Position the hydraulic reservoir onto the tank bracket
(Fig. 392).
13. Remove the hydraulic reservoir (Fig. 390).
Fig 392 PICT-3411a
Fig 390 PICT-3411a
