CHASSIS
3-47Z580/Z593/Z595 Diesel Service Manual
3
Motion Control Assembly
Replacement
Motion Control Assembly Removal
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.

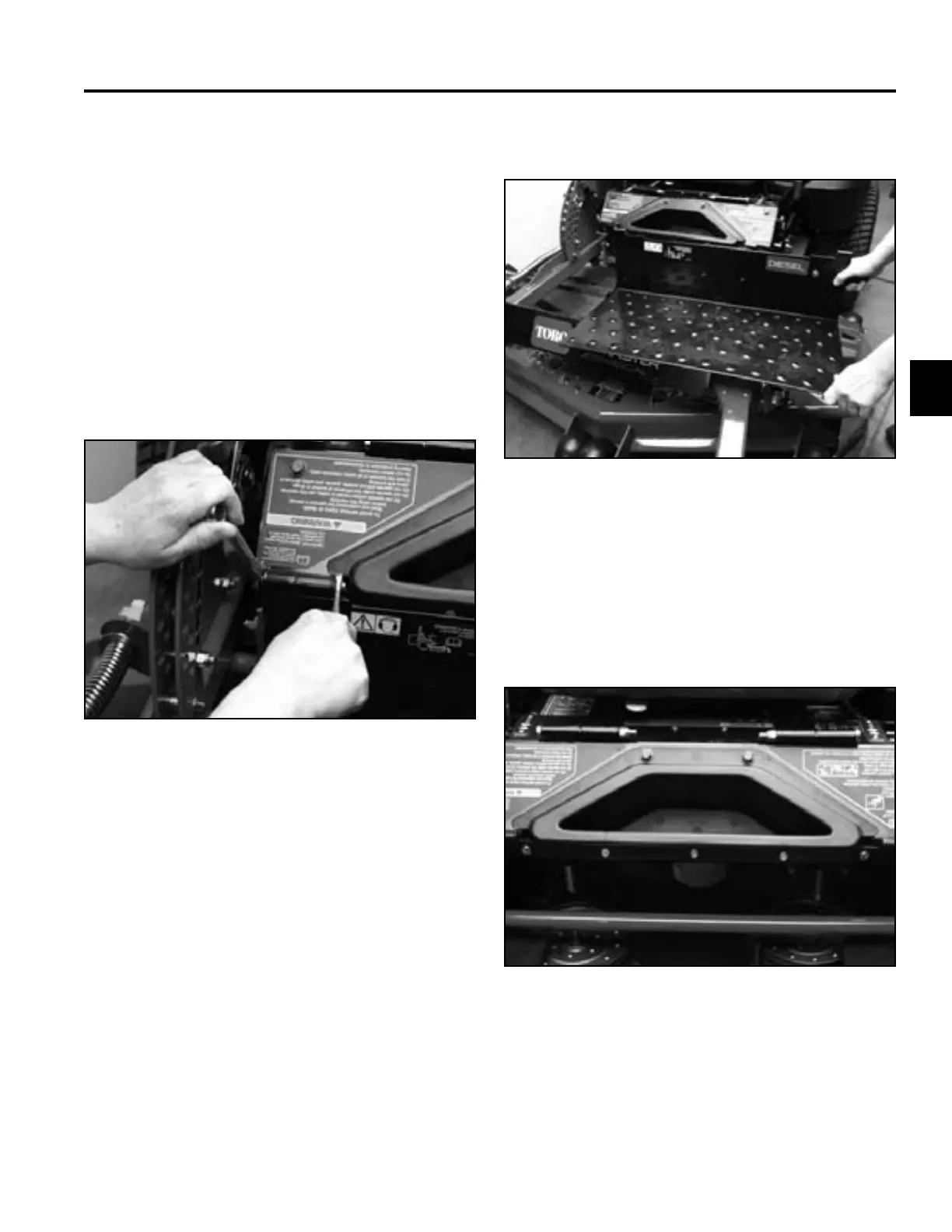

4. Remove both fl oor pan assembly hinge bolts and
nuts (Fig. 176).
Fig 176 PICT-3052
5. Remove the fl oor pan assembly (Fig. 177).
A. Bolt, washer, nut B. Bolt, nut
Fig 177 PICT-3053
6. Remove the 2 top pocket mounting bolts, washer
and nuts and the 2 bottom pocket mounting bolts
and nuts (Fig. 178).
Note: Raise the seat to remove the top two bolts
and nuts.
Fig 178 PICT-3055
A
A
A
A
B
B
B
B
