5-54 Z580/Z593/Z595 Diesel Service Manual
5

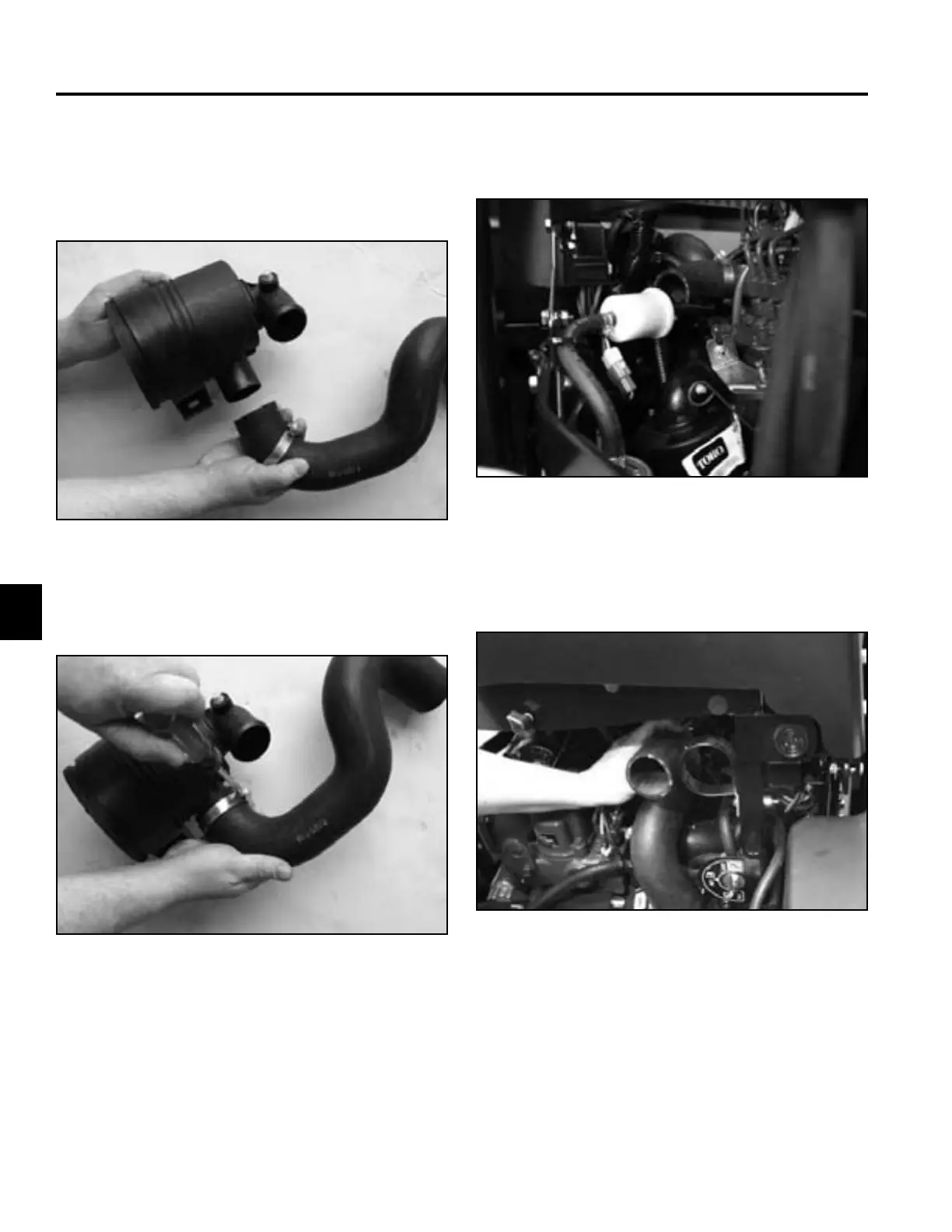

1. Slide the air cleaner intake hose onto the air cleaner
(Fig. 606).
3. Position the upper half of the air cleaner and hose
assembly up to the left side of the engine (Fig. 608).
Fig 606 PICT-3868
Fig 608 PICT-3848
4. Slide the air cleaner intake hose into the R-clamp
located behind the seat (Fig. 609).
2. Position the hose clamp and tighten (Fig. 607).
Fig 609 PICT-3845
Fig 607 PICT-3867
