MOWER DECKS
7-74 Z580/Z593/Z595 Diesel Service Manual
7
Closed End Cap Rebuild
Open End Cap Rebuild
Cross Shaft Rebuild

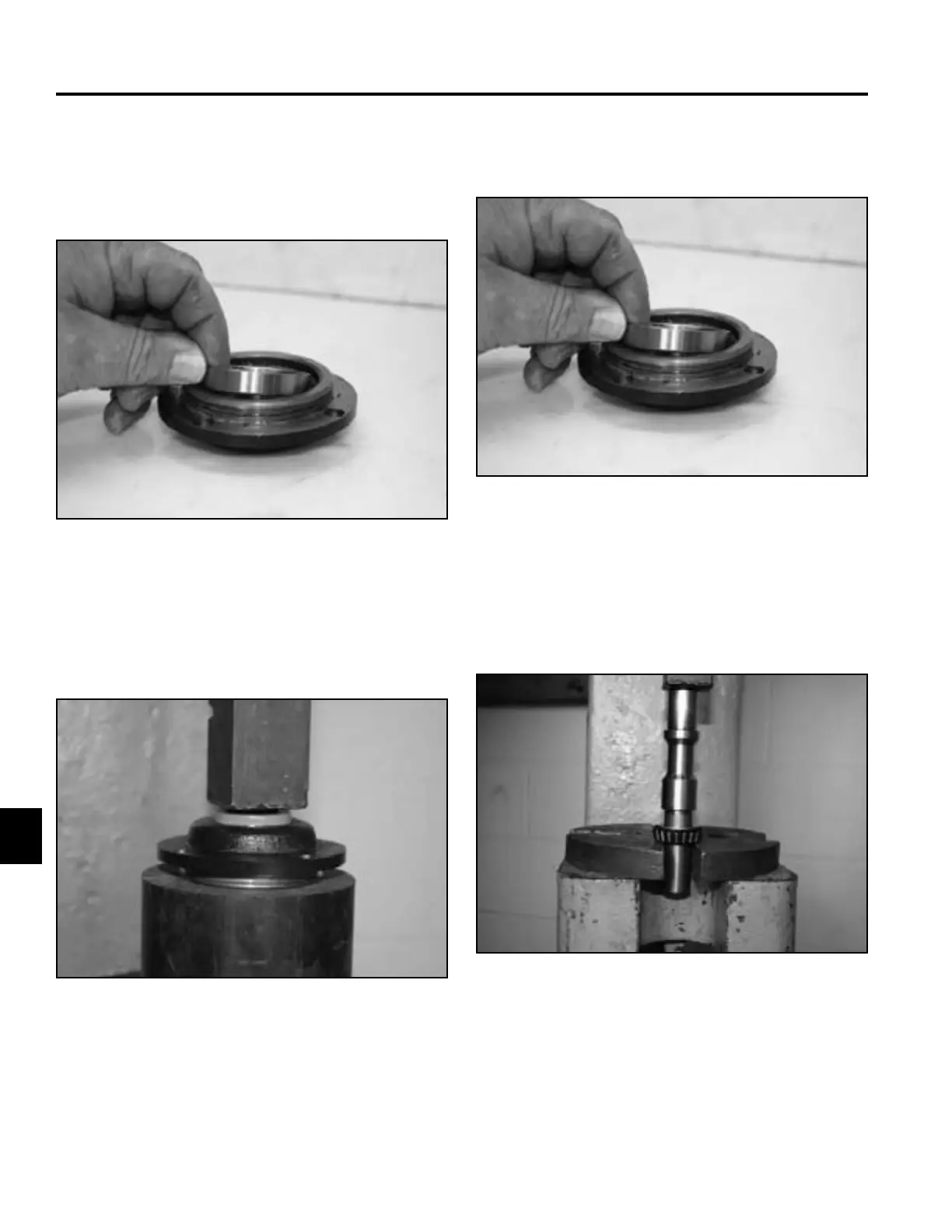

30. Press the bearing race into the open end cap (Fig.
959).
32. Press the bearing race into the open end cap (Fig.
961).
Fig 959 IMG-8537
Fig 961 IMG-8537
33. Place the cross shaft in the press and press a new
bearing onto the shaft (Fig. 962).
31. Press the oil seal into the open end cap (Fig. 960).
Fig 962 IMG-8525
Fig 960 IMG-8538a
