HYDRAULIC SYSTEM
4-37Z580/Z593/Z595 Diesel Service Manual
4

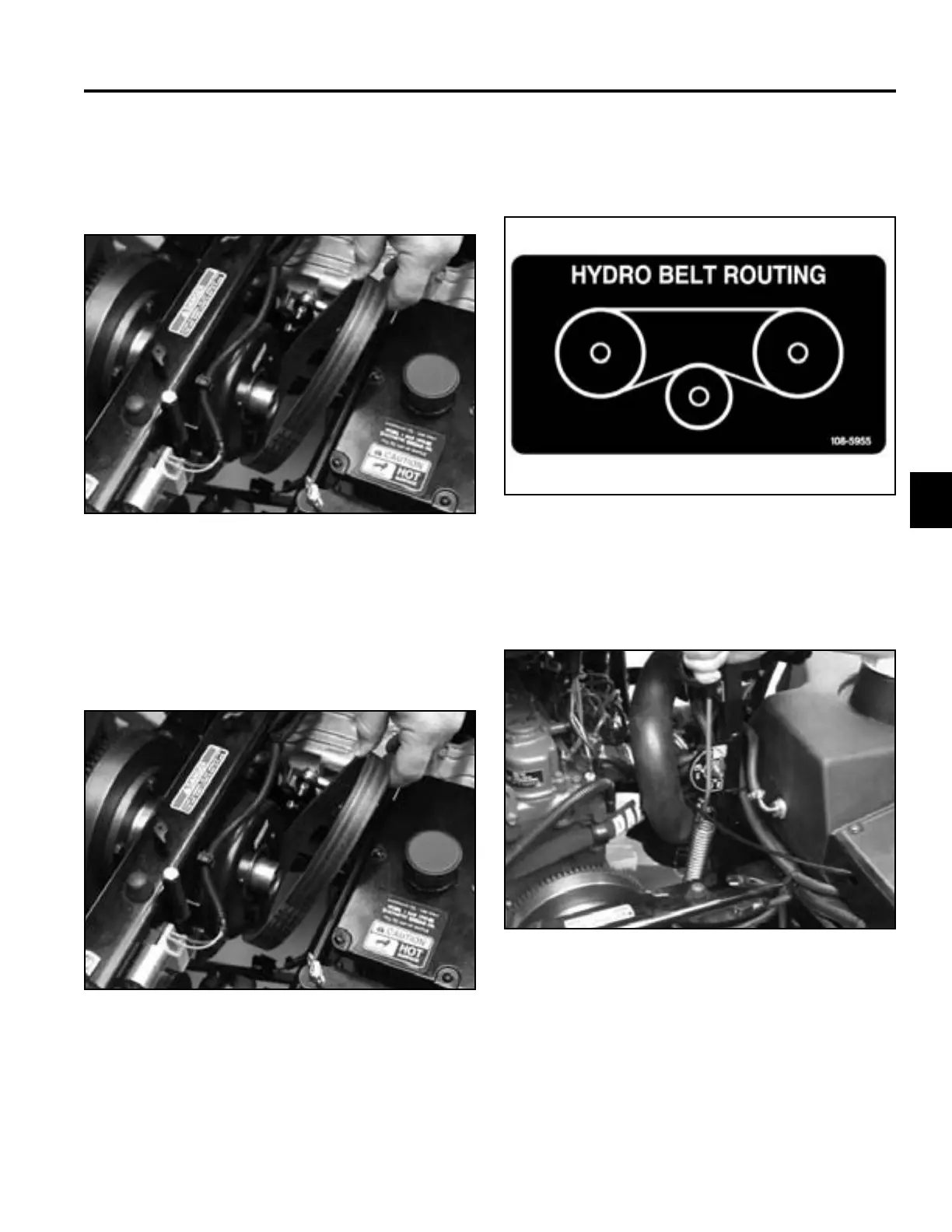

Traction Pump Drive Belt Installation
1. Slide the traction pump drive belt over the electric
PTO clutch (Fig. 358).
11. Remove the traction pump drive belt from the pump
pulley. Lift up on the gearbox idler pulley and re-
move the belt by sliding it out around the electric
PTO clutch (Fig. 357).
Fig 358 PICT-3523
Fig 357 PICT-3523
2. While lifting up on the gearbox idler pulley, route the
traction pump drive belt around the pump pulley and
the engine pulley as shown (Fig. 359):
Fig 359 fi g. 108-5955
3. Using a spring removal tool (Toro p/n: 92-5771),
install the pump idler assembly spring (Fig. 360).
Fig 360 PICT-3522
