ENGINE
5-19Z580/Z593/Z595 Diesel Service Manual
5

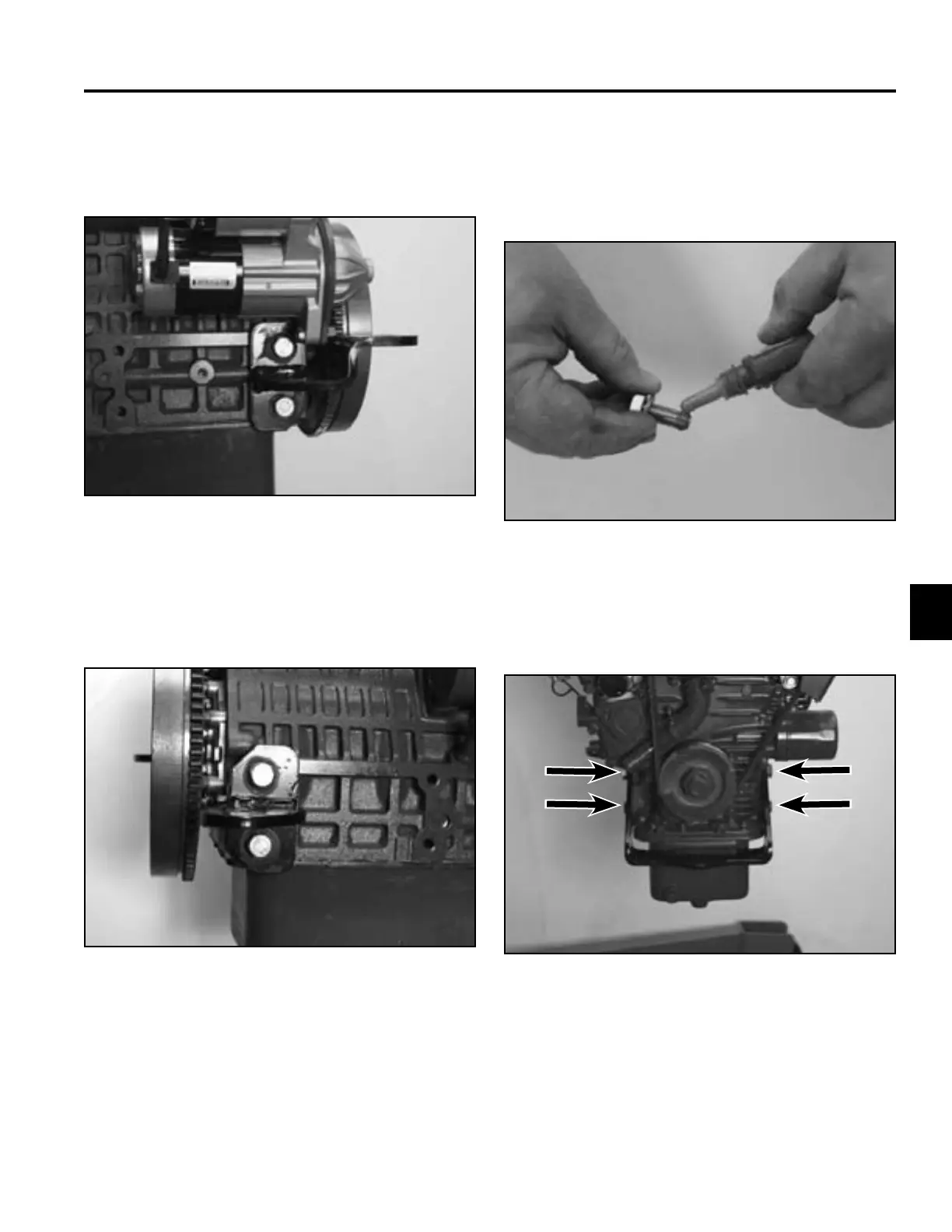

67. Remove the right side engine mount by removing
the 2 bolts and lock washers securing it to the
engine (Fig. 473).
Fig 473 PICT-3643a
Engine Installation
68. Remove the left side engine mount by removing the
2 bolts and lock washers securing it to the engine
(Fig. 474).
Fig 474 PICT-3644
1. Apply thread locking compound to the 8 engine
mounting bracket bolts (Fig. 475).
Fig 475 PICT-3648a
2. Install the rear engine mount bracket to the engine
with 4 mounting bolts and lock washers (Fig. 476).
Fig 476 PICT-3635
