MOWER DECKS
7-35Z580/Z593/Z595 Diesel Service Manual
7

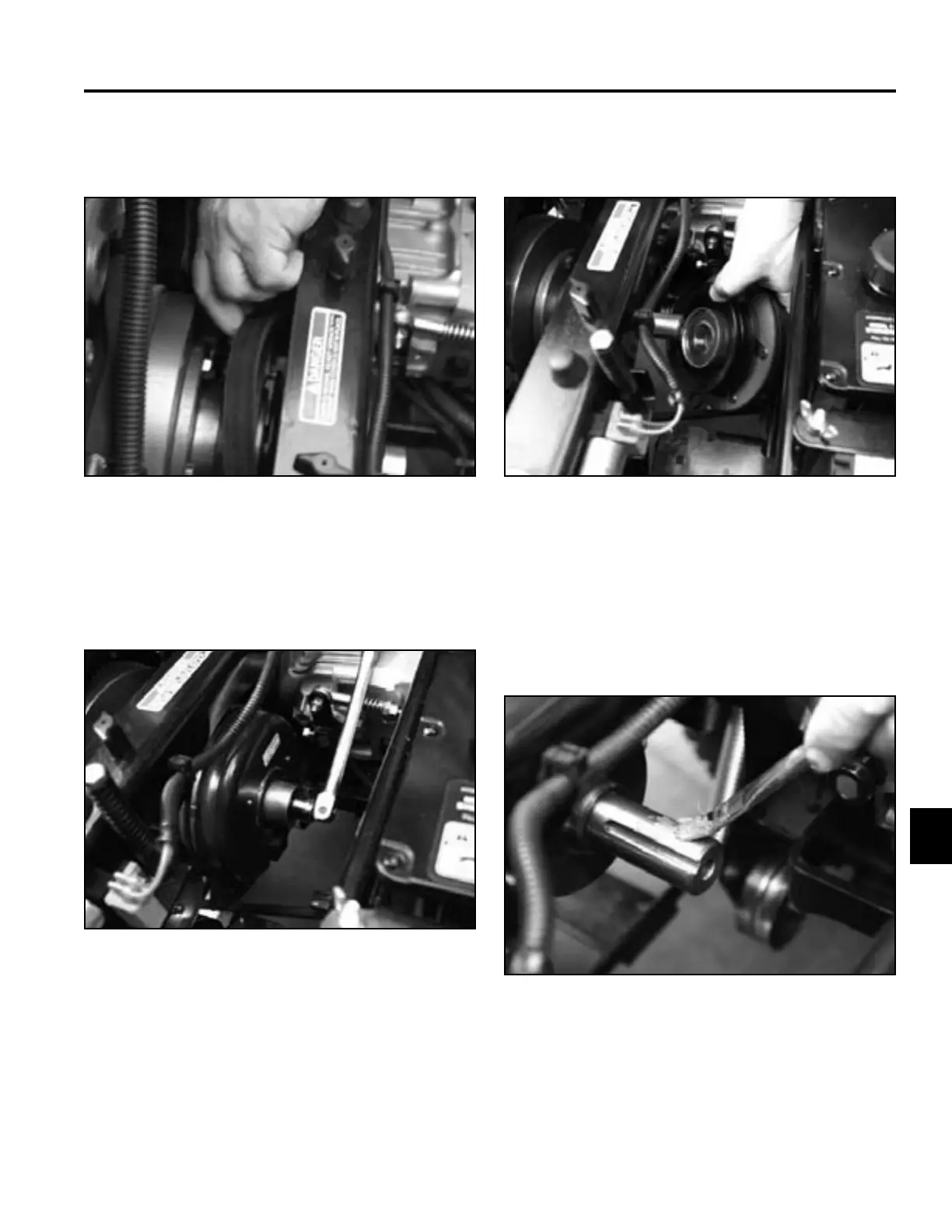

Electric PTO Clutch Installation
Warner Clutch
7. Remove the gearbox drive belt from around the
electric PTO clutch pulley (Fig. 813).
9. Remove the electric PTO clutch from the stub shaft
(Fig. 815).
Fig 813 PICT-3934a
Fig 815 PICT-3615
1. Apply anti-seize compound to the PTO stub shaft
(Fig. 816).
8. Remove the center clutch bolt, 2 spring washers and
clutch retainer securing the electric PTO clutch to
the stub shaft (Fig. 814).
Fig 816 PICT-3655
Fig 814 PICT-3613
