CHASSIS
3-37Z580/Z593/Z595 Diesel Service Manual
3
Brake Cross Shaft Installation

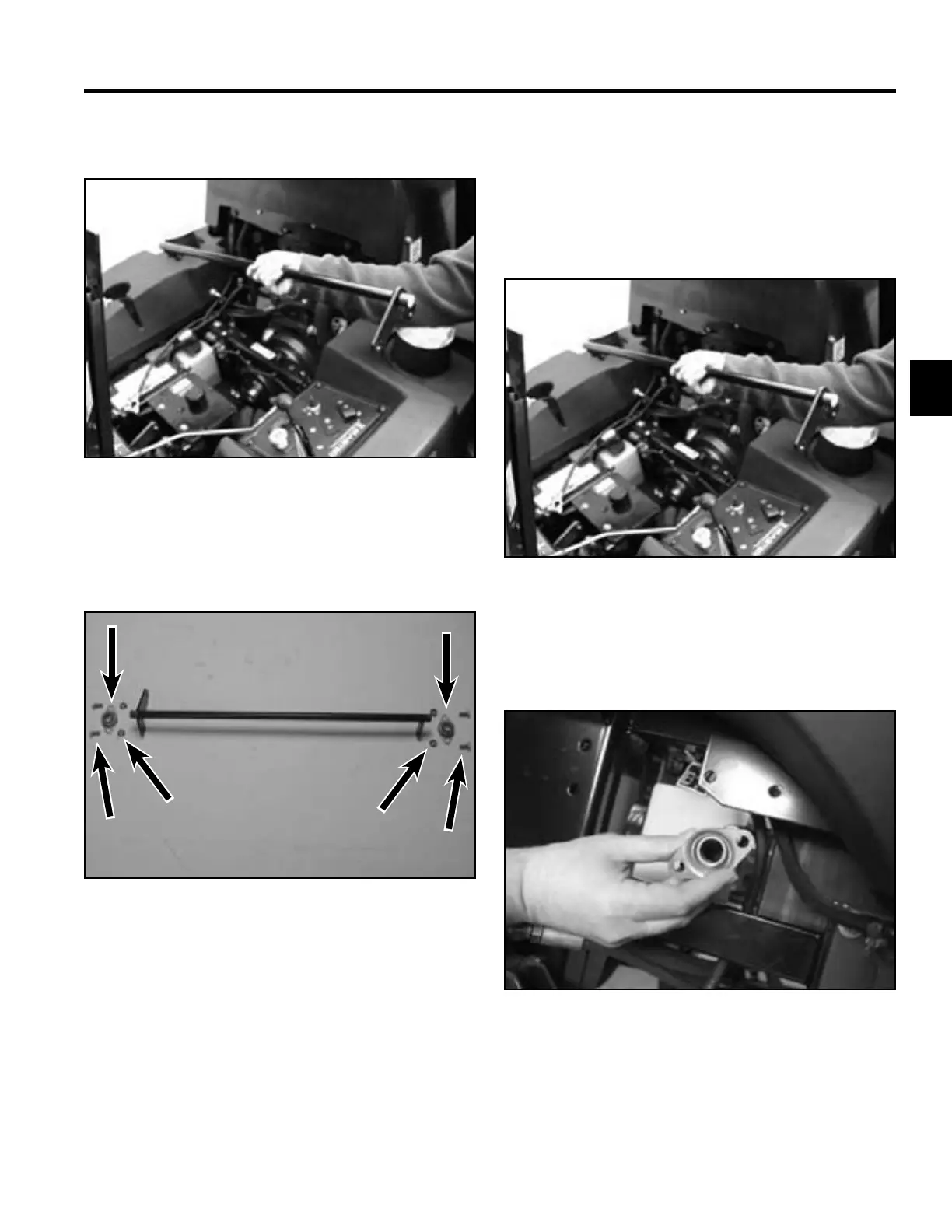

8. Remove brake cross shaft (Fig. 139).
Fig 139 PICT-2964
9. Inspect brake cross shaft and bearings. Replace if
worn or damaged (Fig. 140).
Fig 140 PICT-2968a
1. Slide the brake cross shaft into position (Fig. 141).
Note: The end of the cross shaft with two tabs is
installed on the left side of the machine.
A. Bolt (4) C. Nuts (4)
B. Side fl ange bearing (2) D. Brake cross shaft
Fig 141 PICT-2964
2. Position a fl ange bearing onto each end of the cross
shaft with the fl ange facing outward (Fig. 142).
Fig 142 PICT-2970a
A
A
A
A
B
B
B
B
C
C
C
C
D
D
