ENGINE
5-1Z580/Z593/Z595 Diesel Service Manual
5
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.

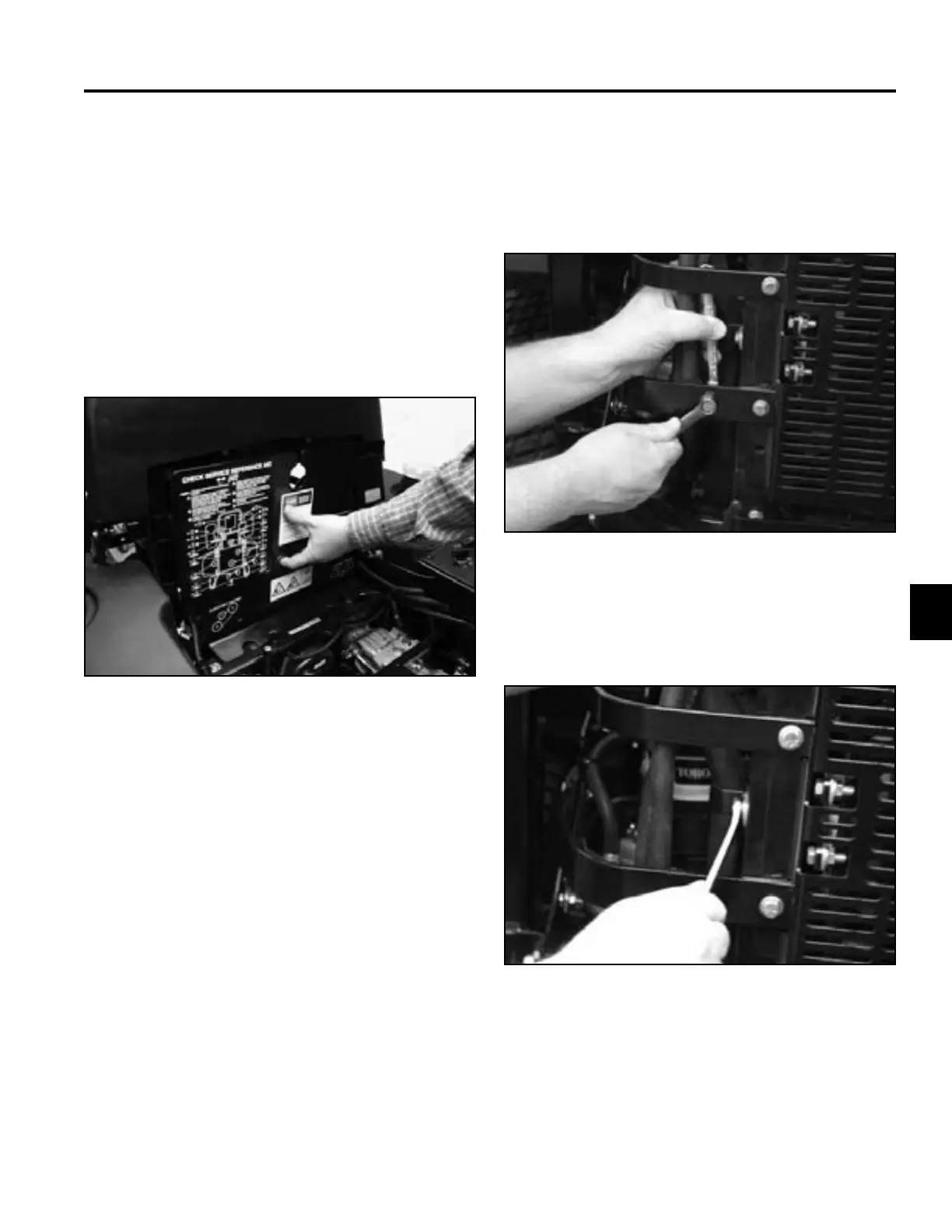

4. Remove the front engine panel (Fig. 404).
Engine Replacement
Engine Removal
Fig 404 IMG_7862
Fig 406 PICT-3528
7. Remove the bolt, washer and nut securing the hose
clamp to the left hand fan guard (Fig. 406).
Fig 405 PICT-3527a
5. Remove the Hood Assembly. Refer to “Hood
Assembly Removal” on page 3-22.
6. Remove the bolt, washer and nut securing the hose
clamp to the left hand guard strap (Fig. 405).
