HYDRAULIC SYSTEM
4-42 Z580/Z593/Z595 Diesel Service Manual
4

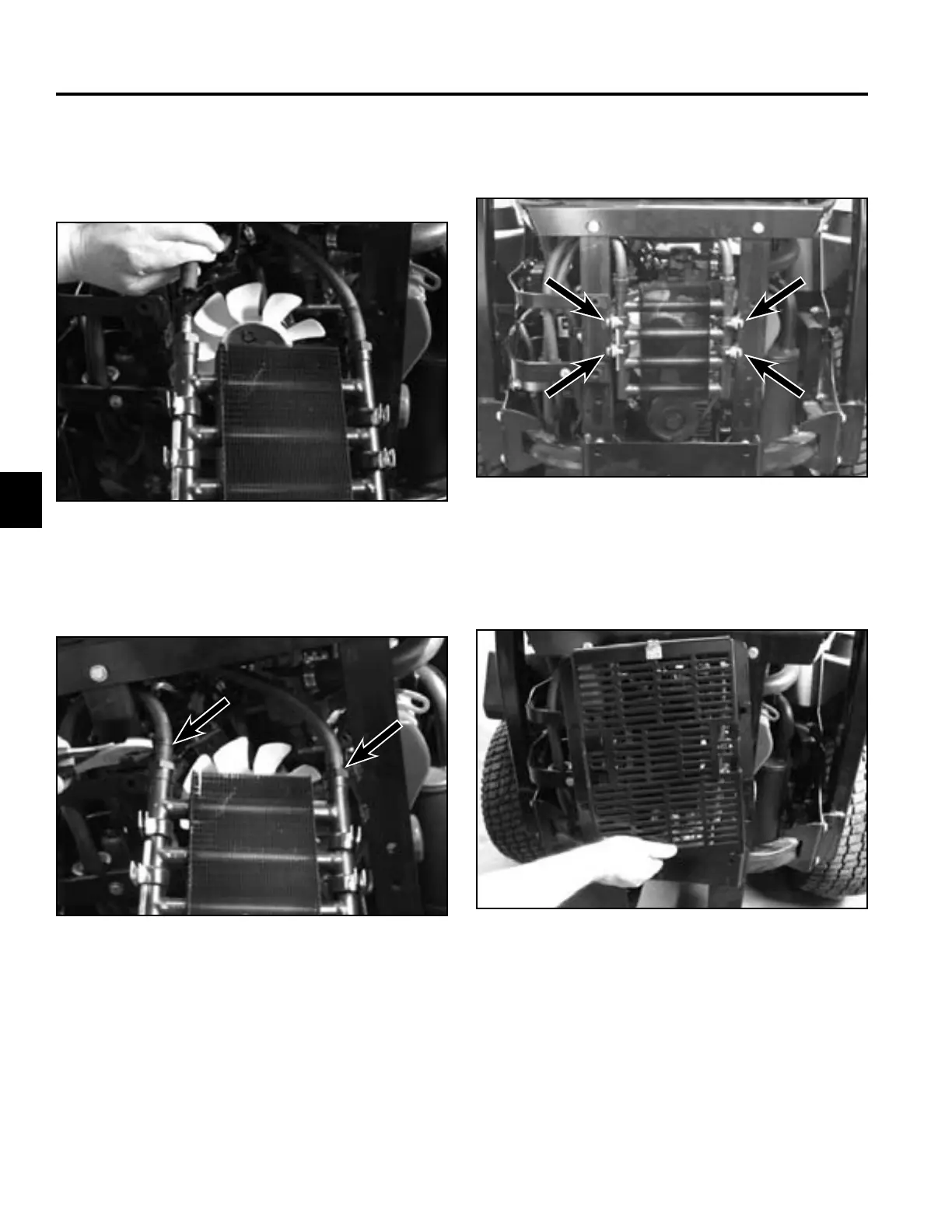

1. Install the 2 hoses onto the oil cooler (Fig. 375).
3. Position the oil cooler and install 4 bolts and nuts
securing the oil cooler to the frame (Fig. 377).
Fig 375 PICT-3454
Fig 377 PICT-3447
4. Position the radiator support between the left hand
top guard strap and frame (Fig. 378).
2. Slide the 2 hose clamps into position (Fig. 376).
Fig 378 PICT-3442
Fig 376 PICT-3452
Hydraulic Oil Cooler Installation
