MOWER DECKS
7-44 Z580/Z593/Z595 Diesel Service Manual
7
Gearbox Assembly Replacement
Gearbox Assembly Removal
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.

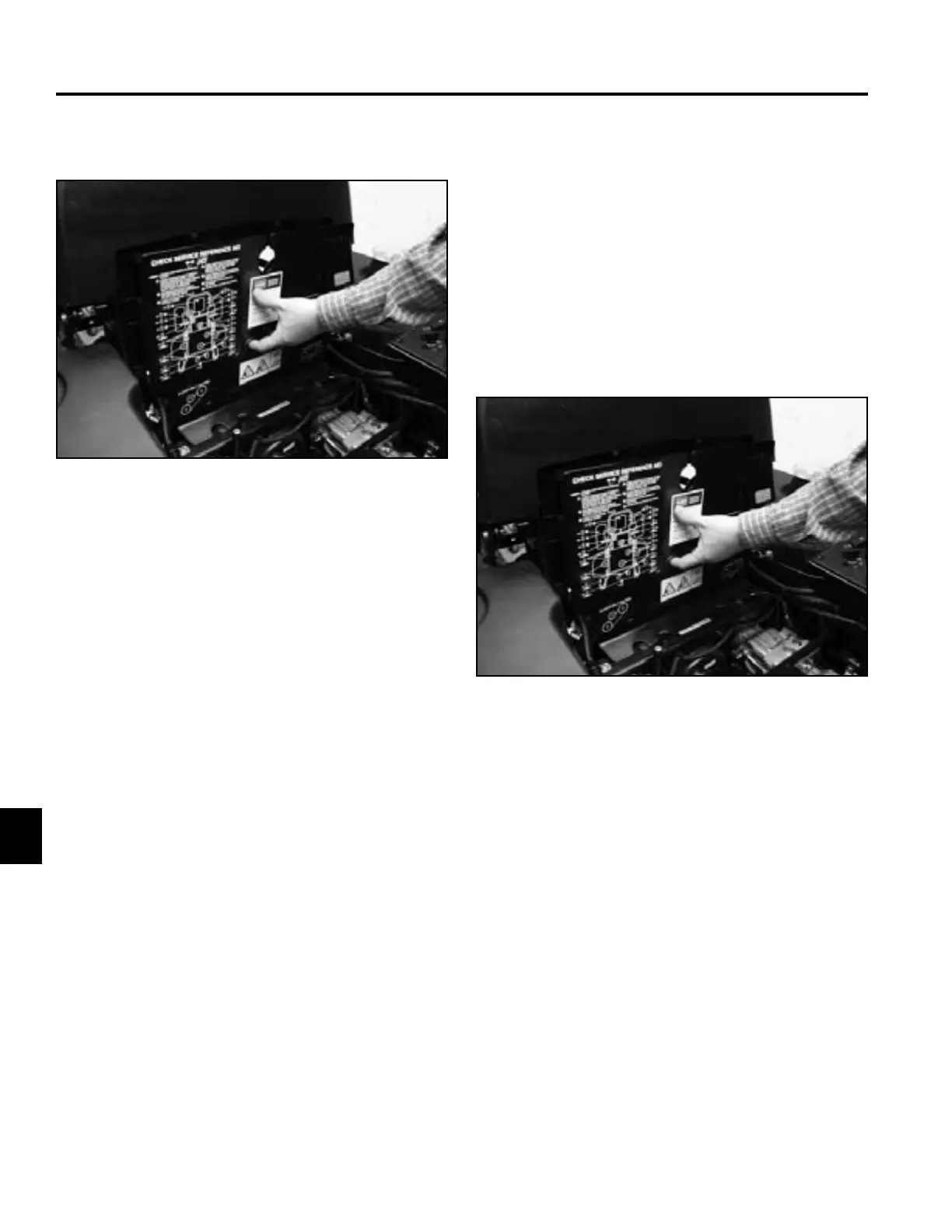

4. Remove the front engine panel (Fig. 849).
Fig 849 IMG_7862
18. Install the negative battery cable to the battery.
19. Lower the seat.
17. Install the front engine panel (Fig. 848).
Fig 848 IMG_7862
