Brake Cross Shaft Removal

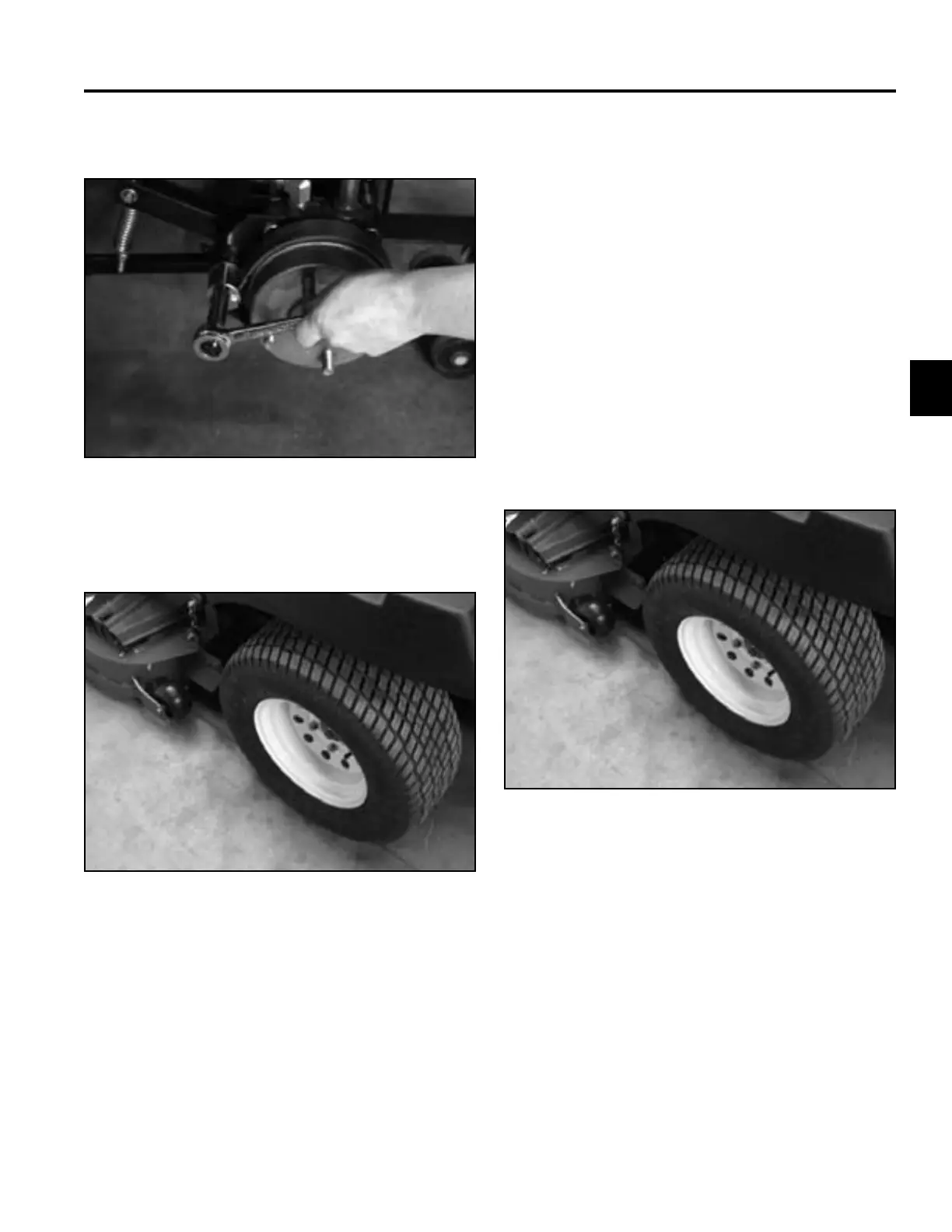

5. Tighten the 3 brake band retainer bolts (Fig. 132).
Fig 132 PICT-2942
6. Install the rear tire (Fig. 133).
Fig 133 PICT-2919
Brake Cross Shaft Replacement
Note: The front engine shield has been removed for
photo purposes.
1. Raise the seat.
2. Remove the negative battery cable from the battery.
3. Raise the rear tires off the ground and remove the
left and right tires (Fig. 134).
Note: To prevent the unit from rolling, block the
front tires.
Fig 134 PICT-2919
