ELECTRICAL
6-11Z580/Z593/Z595 Diesel Service Manual
6
Purpose
Location
High Temperature Audible Alarm
(Solid Tone)
Follow the procedure below to test the delay module
function.
1. Disengage the parking brake.
2. Pull the right and left motion control levers out of the
neutral position.
3. Turn the ignition key to the RUN position.
4. The meter should read approximately 12 volts DC.
5. Disconnect one of the jumper wire leads. The meter
should hold around 12 volts and then read 0 volts
DC after approximately 1 to 3 seconds.
6. If you do not get 12 volts DC at the violet wire when
turning the ignition switch to the RUN position, verify
the following:
• 12 VDC at the orange wire terminal.
• 12 VDC at the brown wire terminal.
• 0 VDC at the black wire terminal.
If all these conditions are met, replace the seat delay
module.
This machine has an audible alarm that alerts the user
to turn off the engine or engine damage can occur from
overheating.

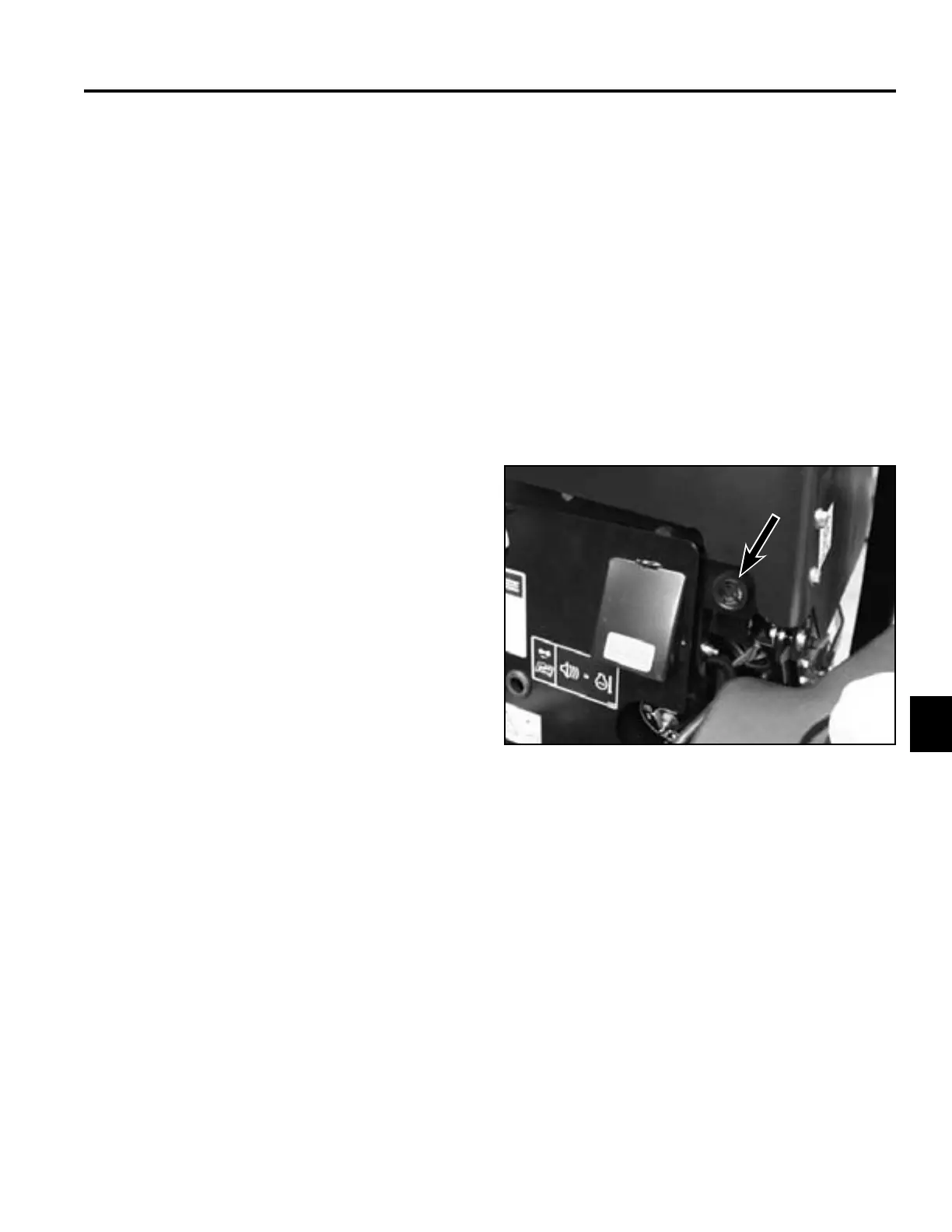

The audible alarm is located behind the seal to the left of
the front engine access panel (Fig. 667).
Fig 667 PICT-4158
