CHASSIS
3-17Z580/Z593/Z595 Diesel Service Manual
3

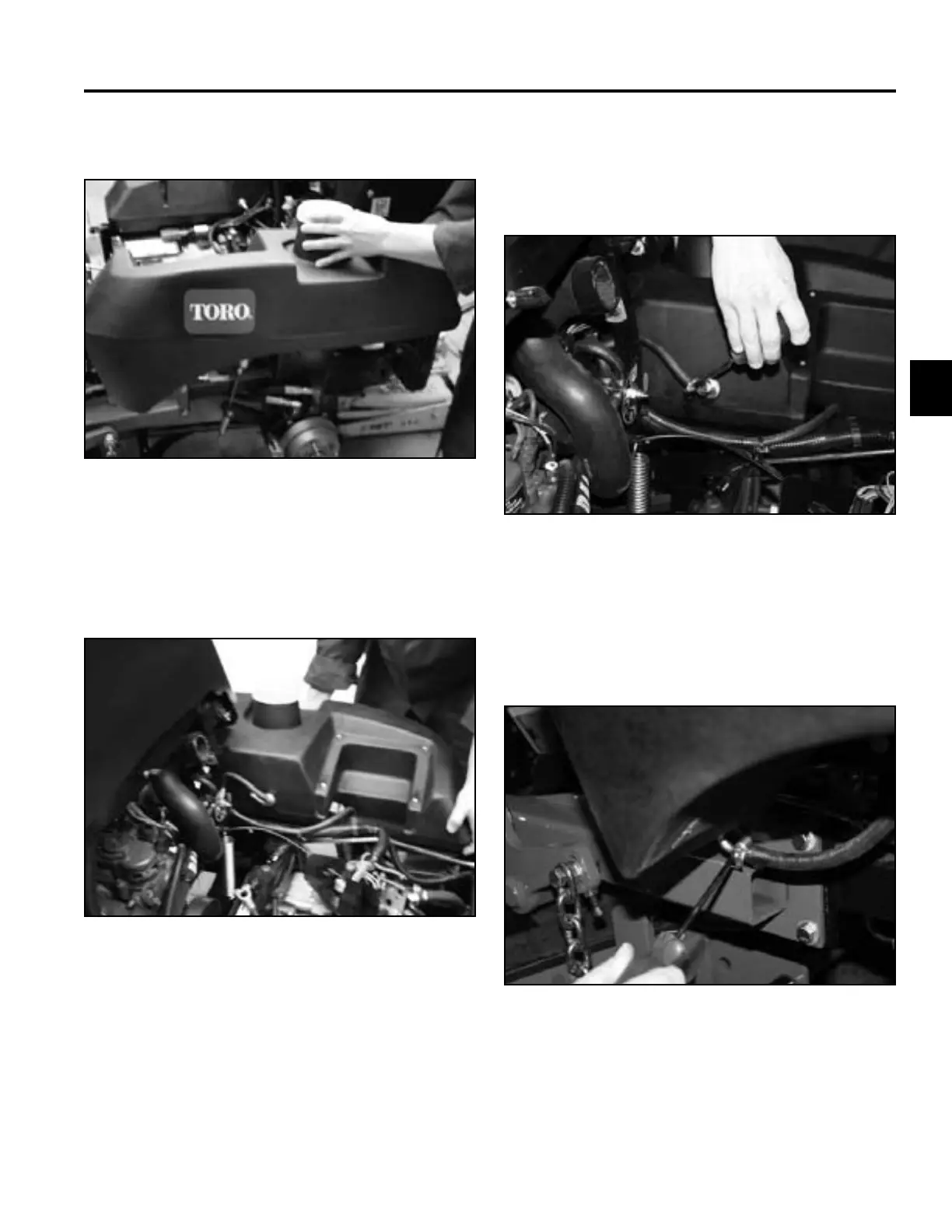

12. Remove the fuel tank from the frame (Fig. 064). 2. Slide a hose clamp onto the return fuel hose. Install
the fuel return hose onto the fuel fi tting barb located
on the operator’s side of the fuel tank. Slide the hose
clamp into position and tighten (Fig. 066).
Fig 064 IMG_7823
Fig 066 IMG_7828
3. Slide a hose clamp onto the fuel intake hose. Install
the fuel intake hose onto the fuel fi tting barb located
on the underside of the fuel tank. Slide the hose
clamp into position and tighten (Fig. 067).
1. Position the fuel tank onto the frame (Fig. 065).
Fig 067 IMG_7833
Fig 065 IMG_7827
Left Side Fuel Tank Installation
