Mower Deck Spindle Rebuild

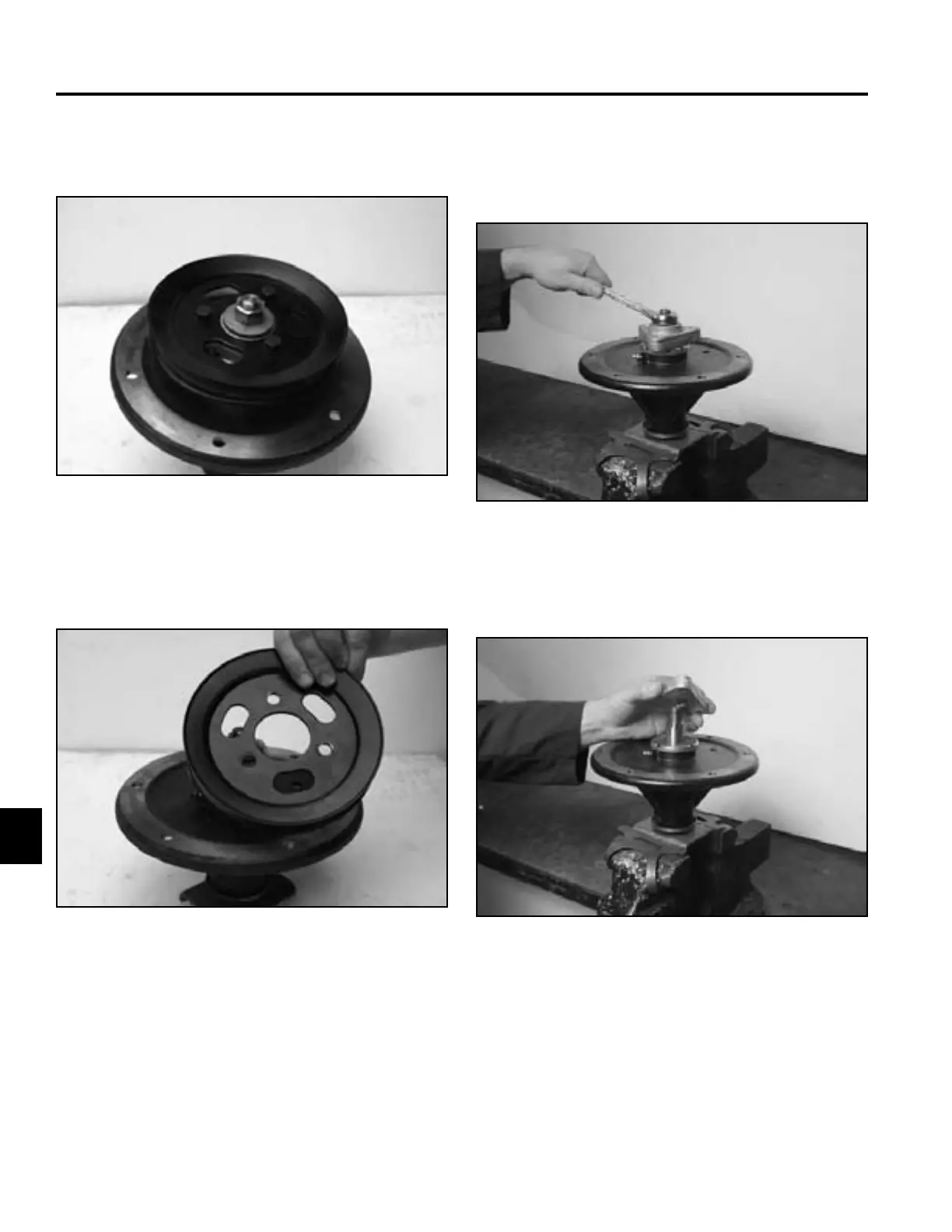

1. Remove the nut and washer (Fig. 729).
Fig 729 CLR DSC-2669
2. Remove the pulley hub and square key (Fig. 730).
Fig 730 CLR DSC-2670
17. 52” mower decks: Remove the 3 bolts securing
the pulley to the spindle hub (Fig. 727).
Fig 727 PICT-4055
18. 52” mower decks: Remove the pulley from the
spindle assembly (Fig. 728).
Fig 728 PICT-4056
