Toro Diesel Z Master User Manual

CHASSIS
3-43Z580/Z593/Z595 Diesel Service Manual
3

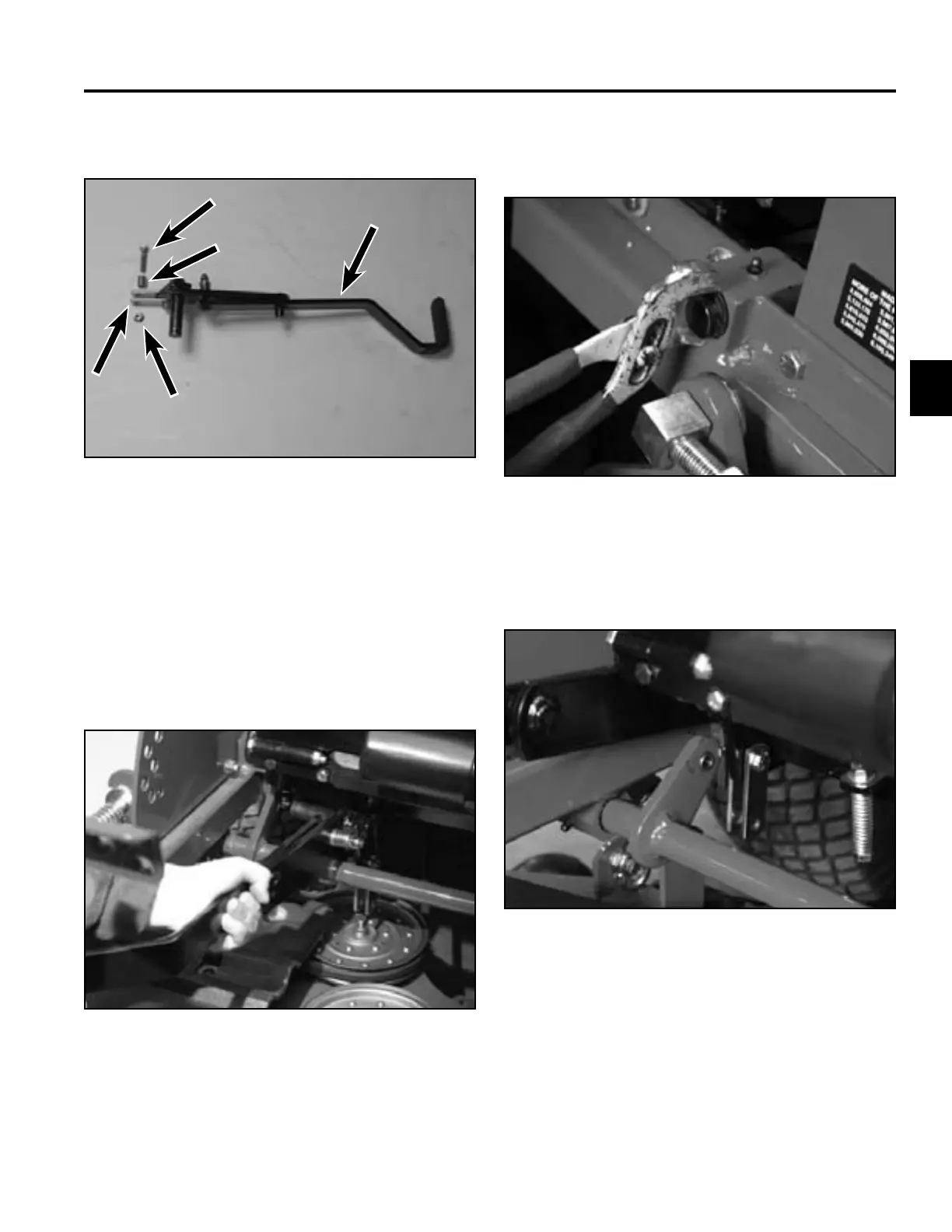

Deck Lift Lever Installation
Deck Lift Lever Assembly (Fig. 162)
Fig 162 PICT-3015a
1. Slide the deck lift lever assembly pivot into the pivot
mount on the frame (Fig. 163).
A. Bolt D. Nut
B. Bushing E. Lift Lever Assembly
C. Deck lift arm (2)
Fig 163 PICT-3011a
2. Install an E-clip onto the deck lift lever pivot (Fig.
164).
Fig 164 PICT-3018
3. Slide the bushing into the hole in the cross shaft
assembly tab (Fig. 165).
Fig 165 PICT-3019
A
A
B
B
E
E
C
C
D
D
