7-26 Z580/Z593/Z595 Diesel Service Manual
7

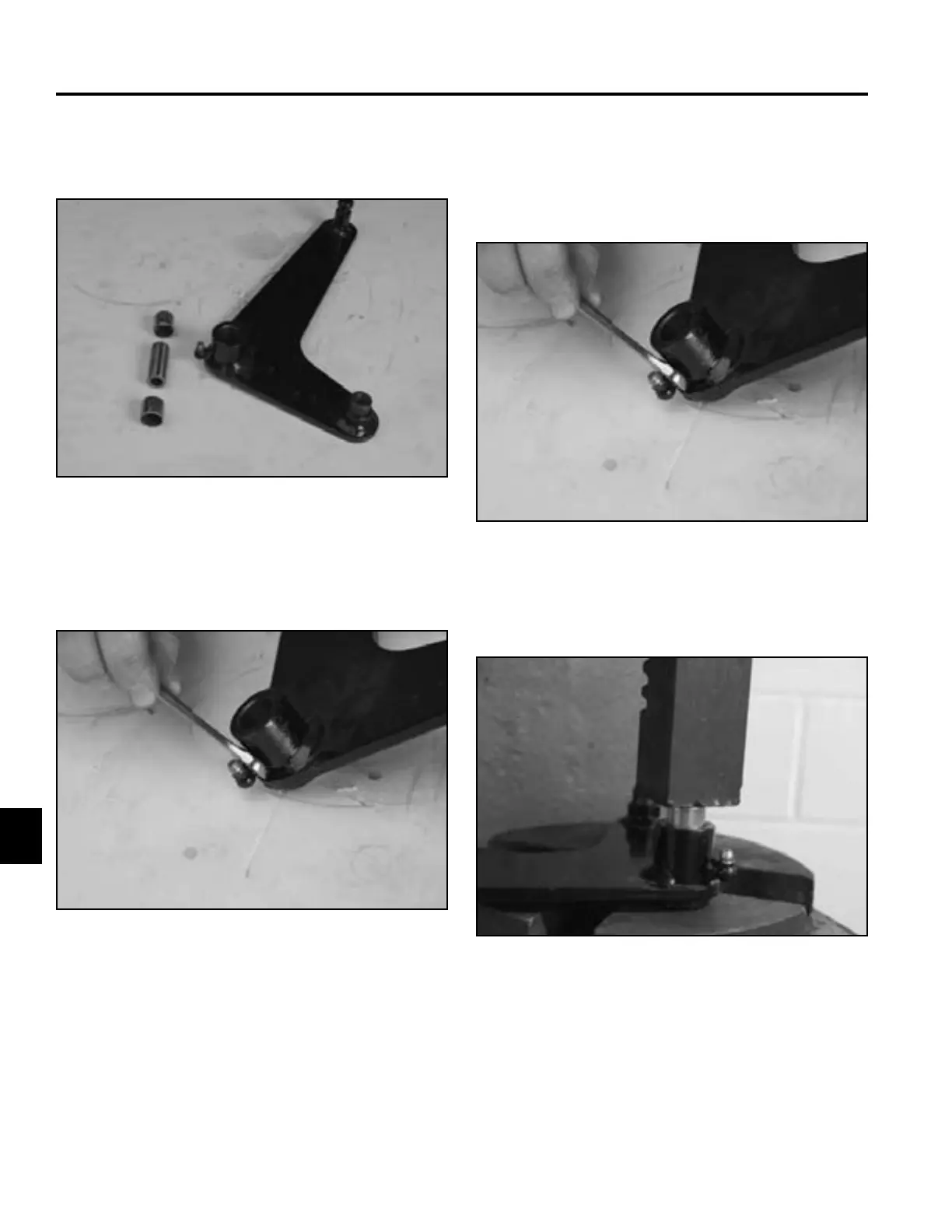

Mower Deck Idler Assembly Installation
11. Remove the 2 bushings and 1 spacer from the idler
arm (Fig. 780).
1. Install a grease fi tting into the idler arm pivot (Fig.
782).
Fig 780 PICT-4073a
Fig 782 PICT-4070a
12. Remove the grease fi tting from the idler arm pivot
(Fig. 781).
2. Press 2 bushings into the idler arm pivot (Fig. 783).
Fig 783 PICT-4077a
Fig 781 PICT-4070a
