HYDRAULIC SYSTEM
4-35Z580/Z593/Z595 Diesel Service Manual
4
Traction Pump Drive Belt
Replacement
Traction Pump Drive Belt Removal
5. Unplug the harness connector from the electric PTO
clutch (Fig. 351).

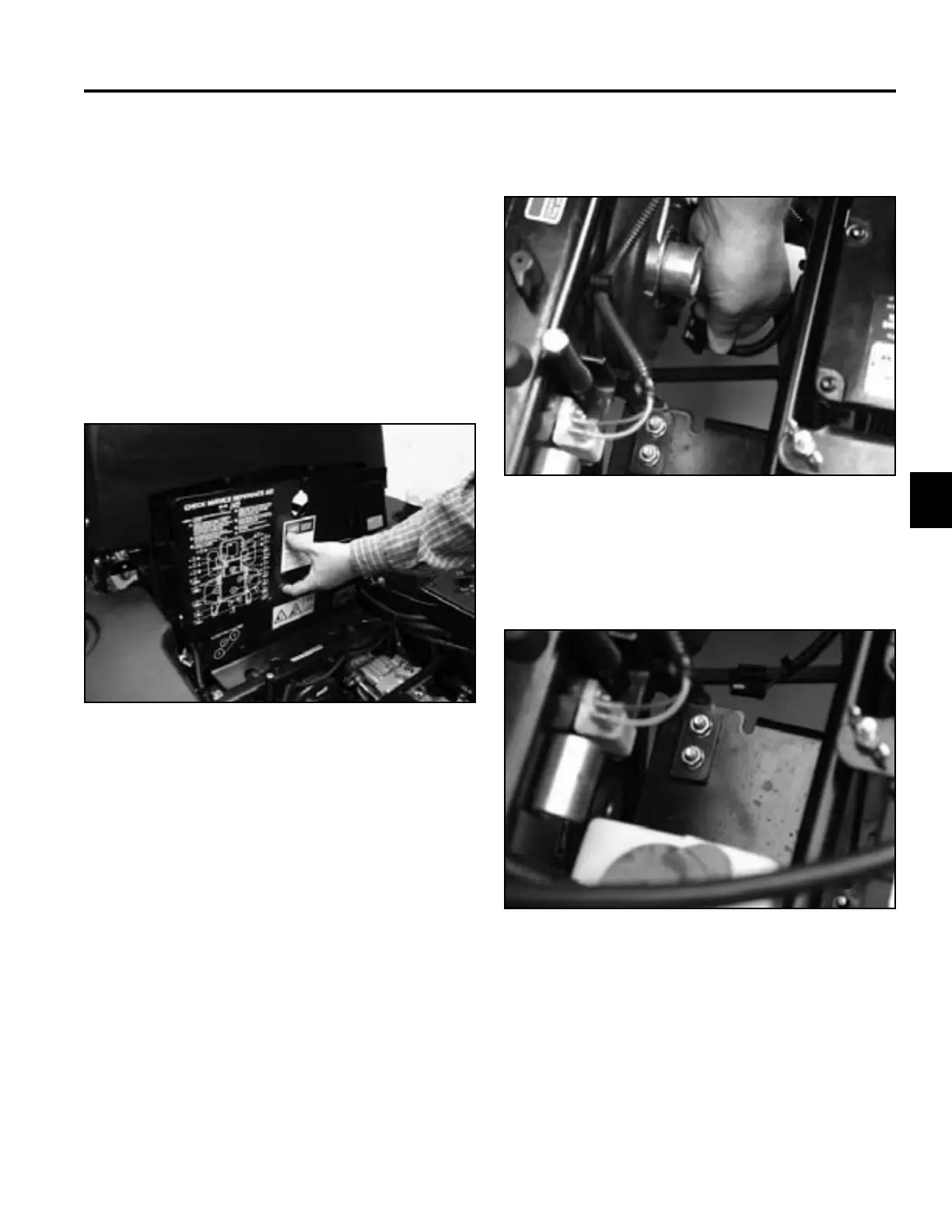

Fig 350 IMG_7862
Fig 351 PICT-3513
6. Remove the 2 carriage bolts and nuts securing the
clutch stop bracket to the frame (Fig. 352).
Fig 352 PICT-3514
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.
4. Remove the front engine panel (Fig. 350).
