MOWER DECKS
7-9Z580/Z593/Z595 Diesel Service Manual
7
Mower Spindle Removal
Mower Spindle Replacement
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.

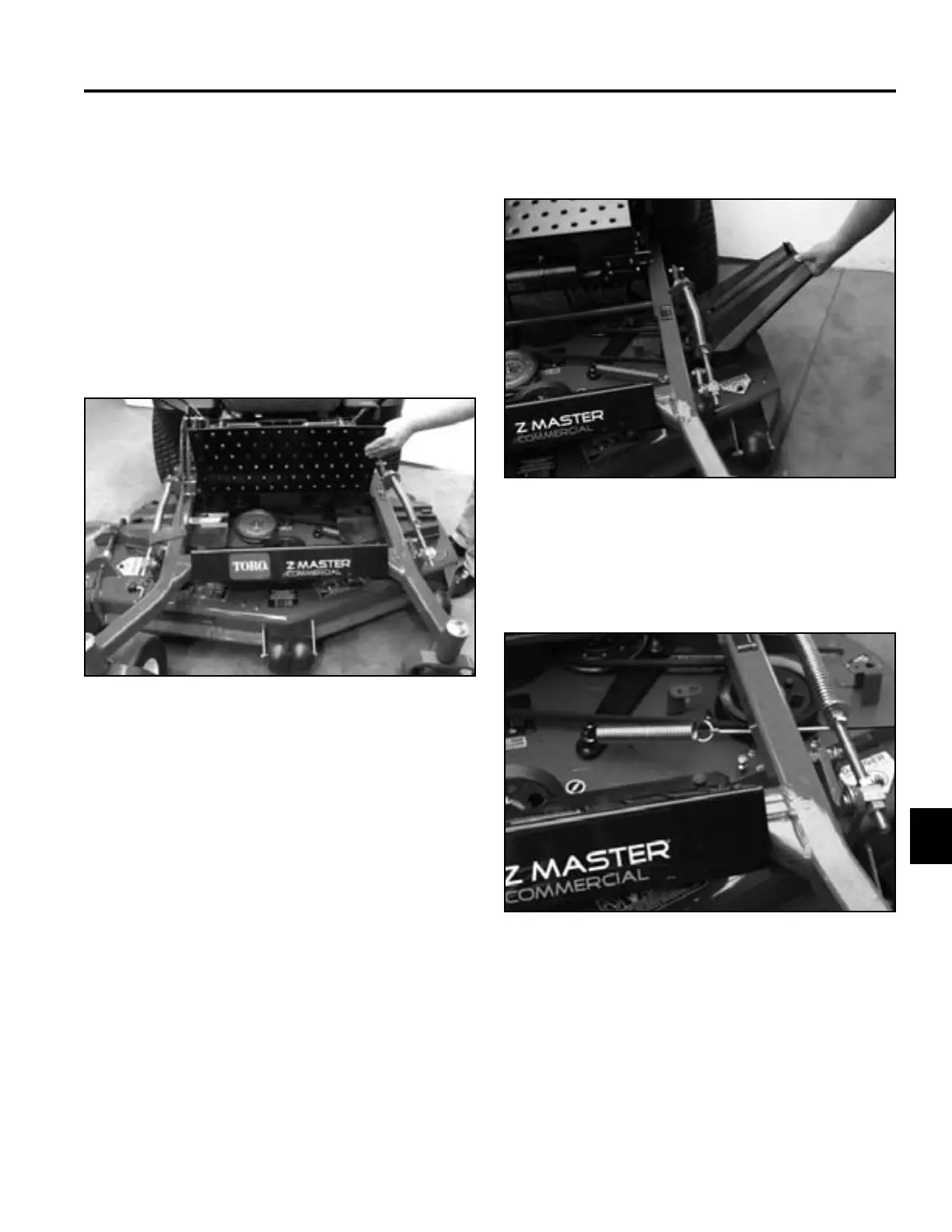

4. Raise the fl oor pan assembly (Fig. 716).
5. Remove the left and right mower deck belt covers
(Fig. 717).
Fig 716 PICT-4011
Fig 717 PICT-4012
6. Using a spring removal tool (Toro p/n: 92-5771), re-
move the mower deck idler spring (Fig. 718).
Fig 718 PICT-4013
