HYDRAULIC SYSTEM
4-44 Z580/Z593/Z595 Diesel Service Manual
4
Hydraulic Reservoir Tank Removal
Hydraulic Reservoir Tank
Replacement
1. Park the machine on a level surface, disengage the
PTO, engage the parking brake, turn the ignition off
and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.
4. Raise the fl oor pan assembly (Fig. 382).
5. Remove the left hand mower deck belt cover (Fig.
383).

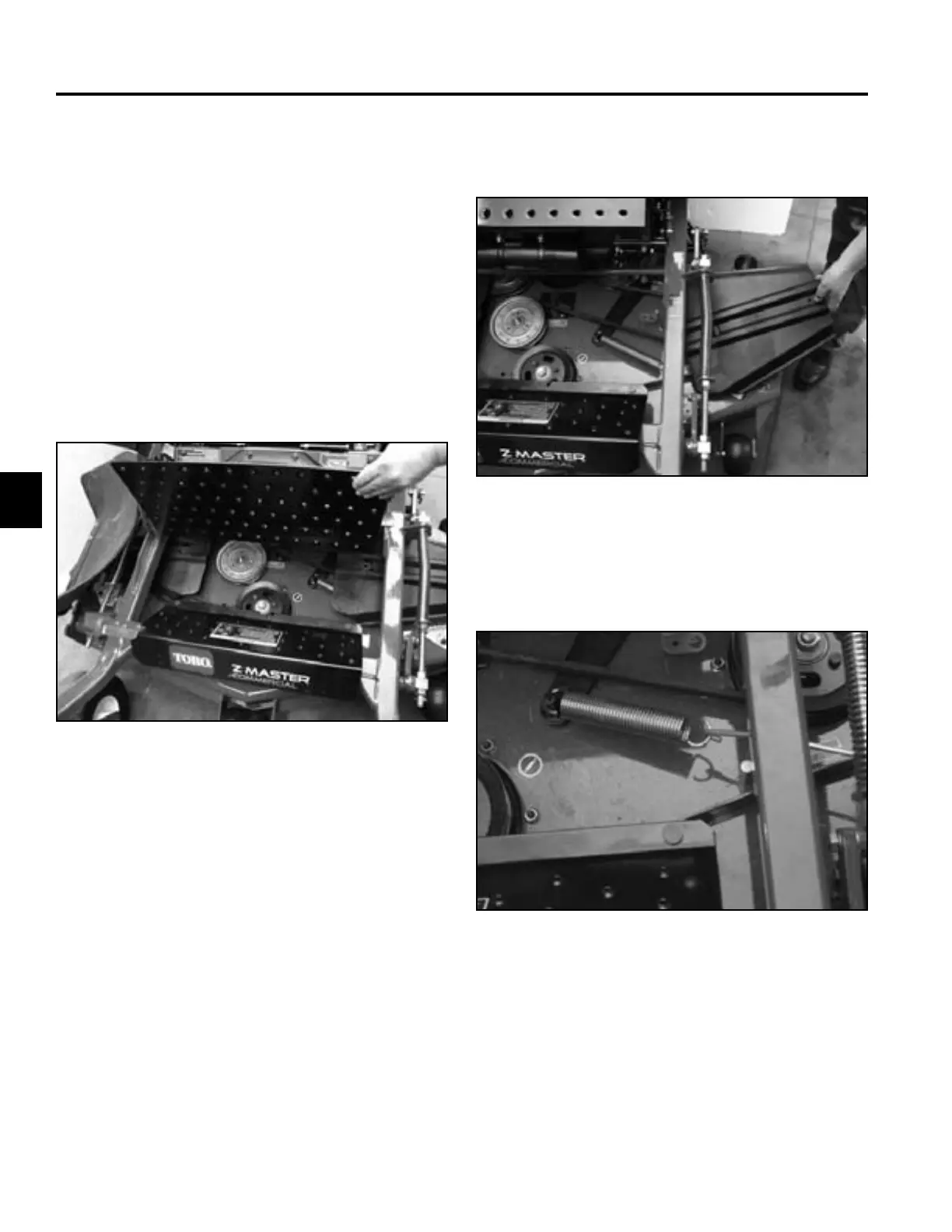

Fig 382 PICT-3388
Fig 383 PICT-3389
6. Unhook the idler spring from the mower deck idler
arm and spring post (Fig. 384).
Fig 384 PICT-3391a
