CHASSIS
3-61Z580/Z593/Z595 Diesel Service Manual
3
Motion Control Damper Replacment
Motion Control Damper Removal
5. Remove the outer nut from the bolt on the upper end
of the damper (Fig. 230).

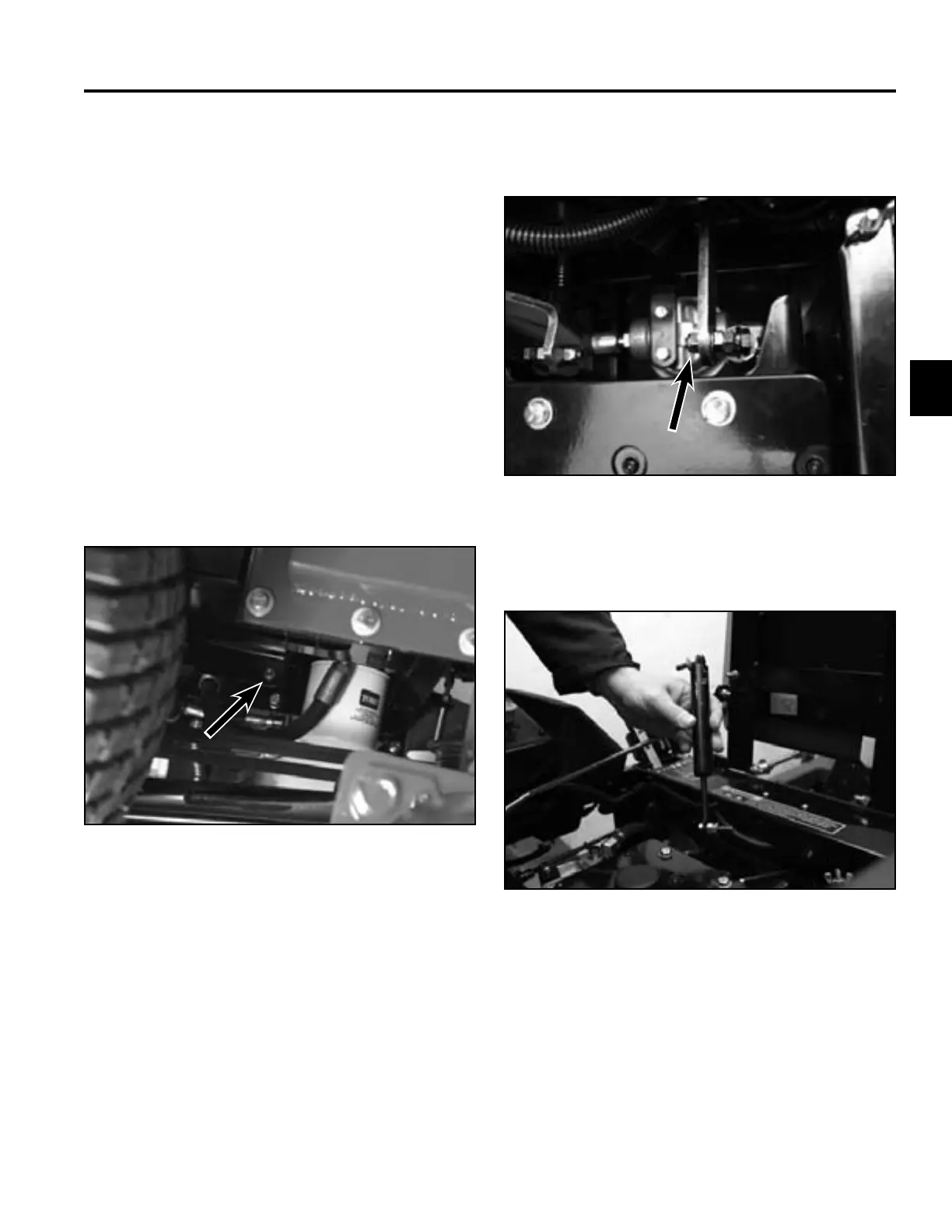

Fig 230 PICT-3173
6. Remove the damper assembly (Fig. 231).
1. Park the machine on a level surface, disengage the
PTO, turn the ignition off and remove the key.
2. Raise the seat.
3. Remove the negative battery cable from the battery.
4. Remove the outer nut from the bolt on the lower end
of the damper (Fig. 229).
Fig 231 PICT-3178
Fig 229 PICT-3171
There is a right and a left motion control damper. The
following removal and installation procedures are done
on the right damper. The procedures are the same for
the left damper.
