5-58 Z580/Z593/Z595 Diesel Service Manual
5

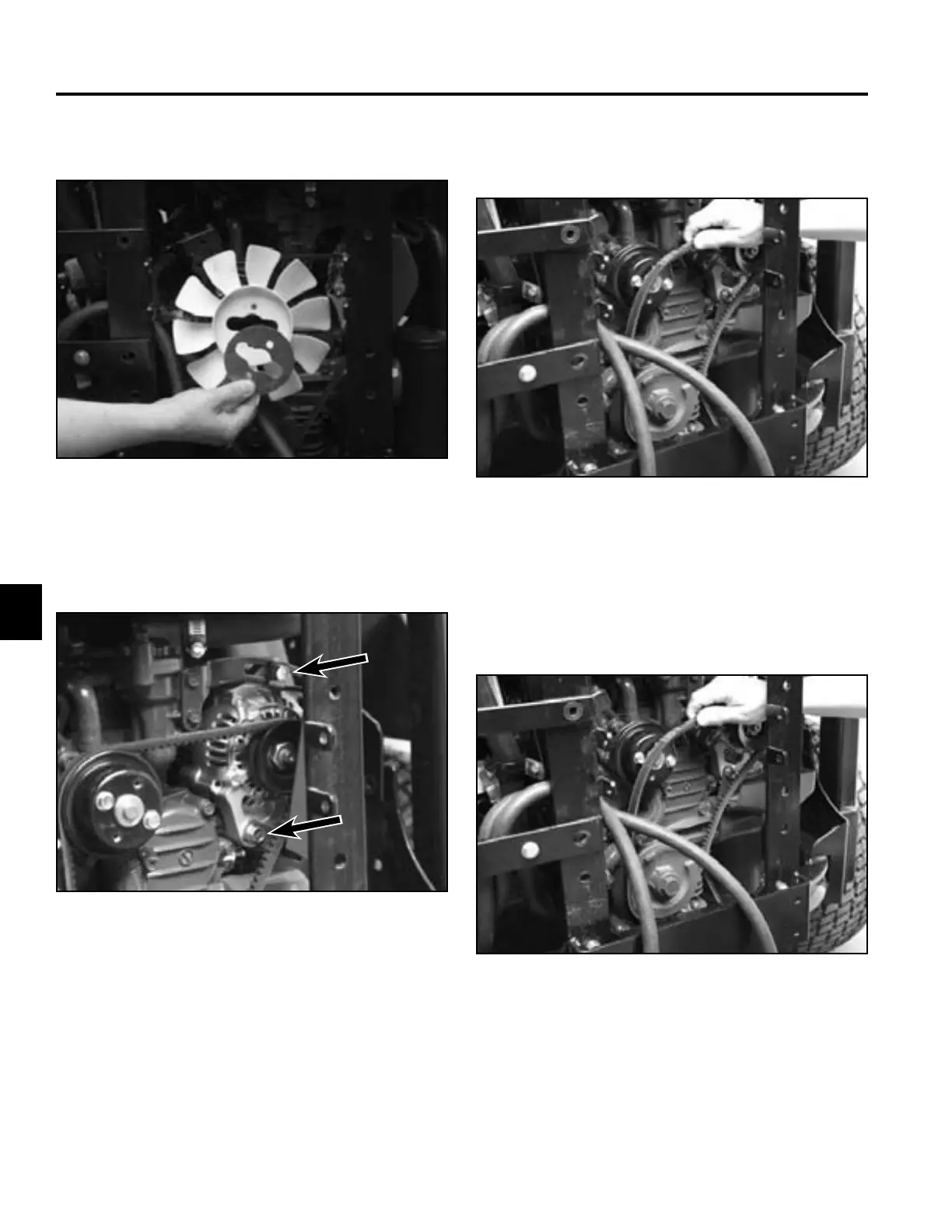

Alternator Belt Installation
11. Remove the retainer and fan (Fig. 621). 13. Rotate the belt cover to the side and remove the belt
from the pulleys and alternator (Fig. 623).
Fig 621 PICT-3795a
Fig 623 PICT-3799
1. Route the alternator belt around the pulley and the
alternator (Fig. 624).
12. Loosen the bottom bolt and remove the upper bolt
securing the alternator and belt cover (Fig. 622).
Fig 624 PICT-3799
Fig 622 PICT-3797
