CHASSIS
3-32 Z580/Z593/Z595 Diesel Service Manual
3

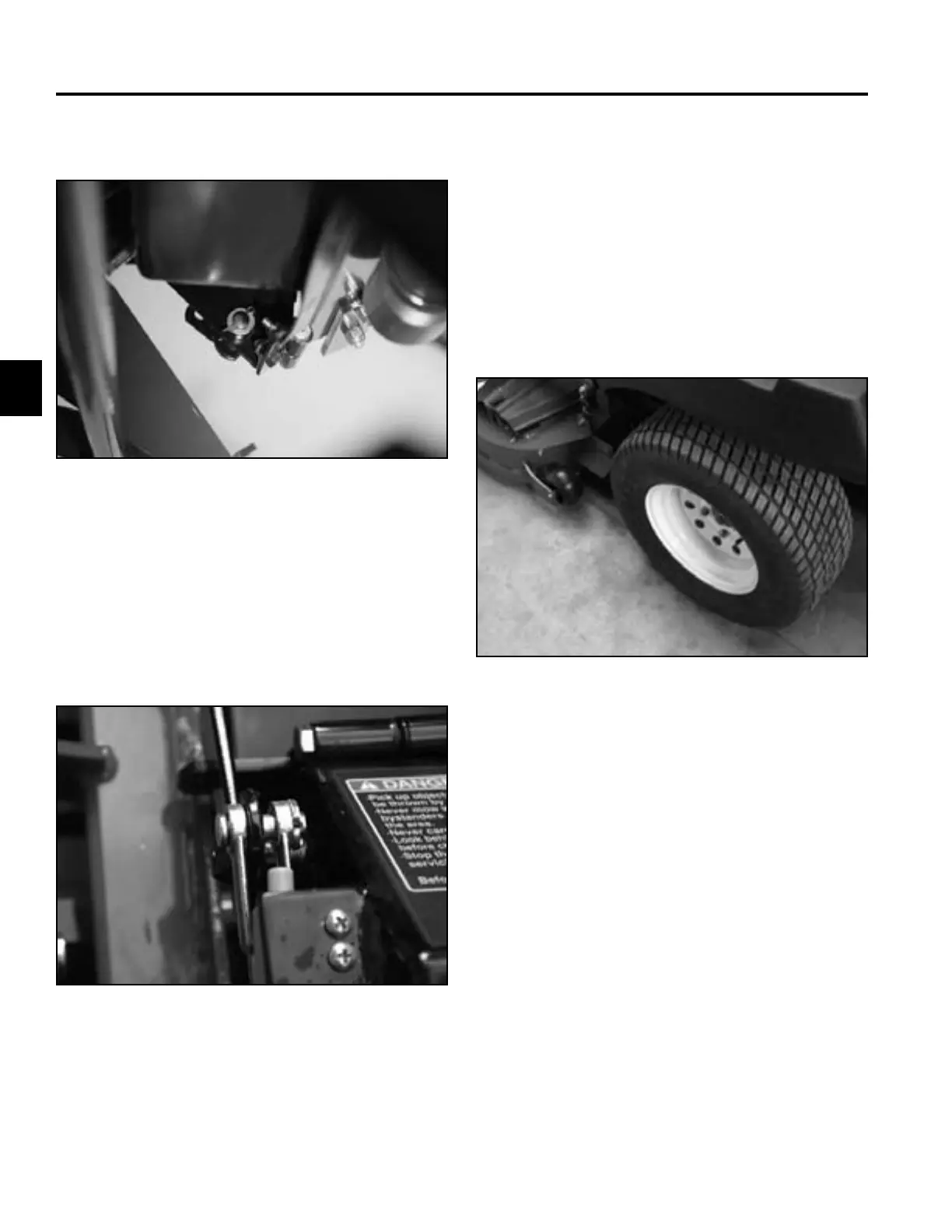

Brake Band Replacement
Brake Band Removal
Note: The following procedures can be followed for
both right and left brake band removal and
installation.
1. Remove the rear tire (Fig. 123).
Fig 123 PICT-2919
4. Install a cotter pin into the pivot shaft (Fig. 121).
Fig 121 IMG_7922a
5. Lower the fl oor pan assembly.
6. Move the parking brake lever into the released
(forward) position.
7. Position the brake linkage yoke to the brake lever.
Install a clevis and cotter pin to secure (Fig. 122).
Fig 122 PICT-2895
