MOWER DECKS
7-58 Z580/Z593/Z595 Diesel Service Manual
7

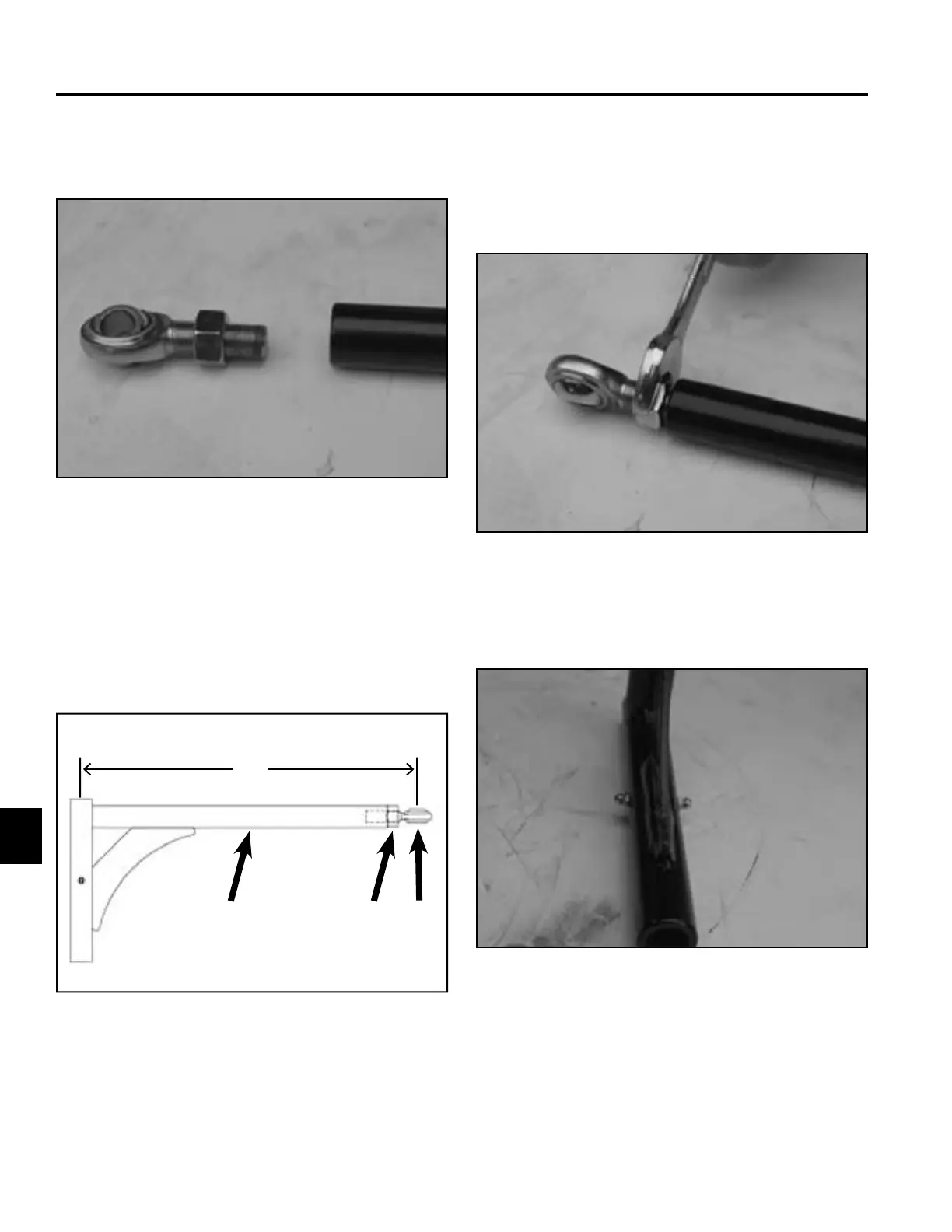

2. Tighten the jam nut to secure the balljoint position
(Fig. 900).
Note: Balljoint to be positioned perpendicular to
strut.
Fig 900 PICT-4119a
3. Install 2 grease fi ttings into the strut (Fig. 901).
Fig 901 PICT-4116a
Strut Installation
13. Remove the balljoint and jam nut from the strut (Fig.
898).
A. Strut C. Balljoint
B. Jam nut D. 17.31” (43.97cm)
Fig 898 PICT-4121a
1. Install the balljoint and jam nut into the strut. The
length of the strut should be 17.31” (43.97cm) from
the center of the balljoint to the center of the cross
shaft of the strut (Fig. 899).
Fig 899 fi g. 108-5969
A
D
BC
