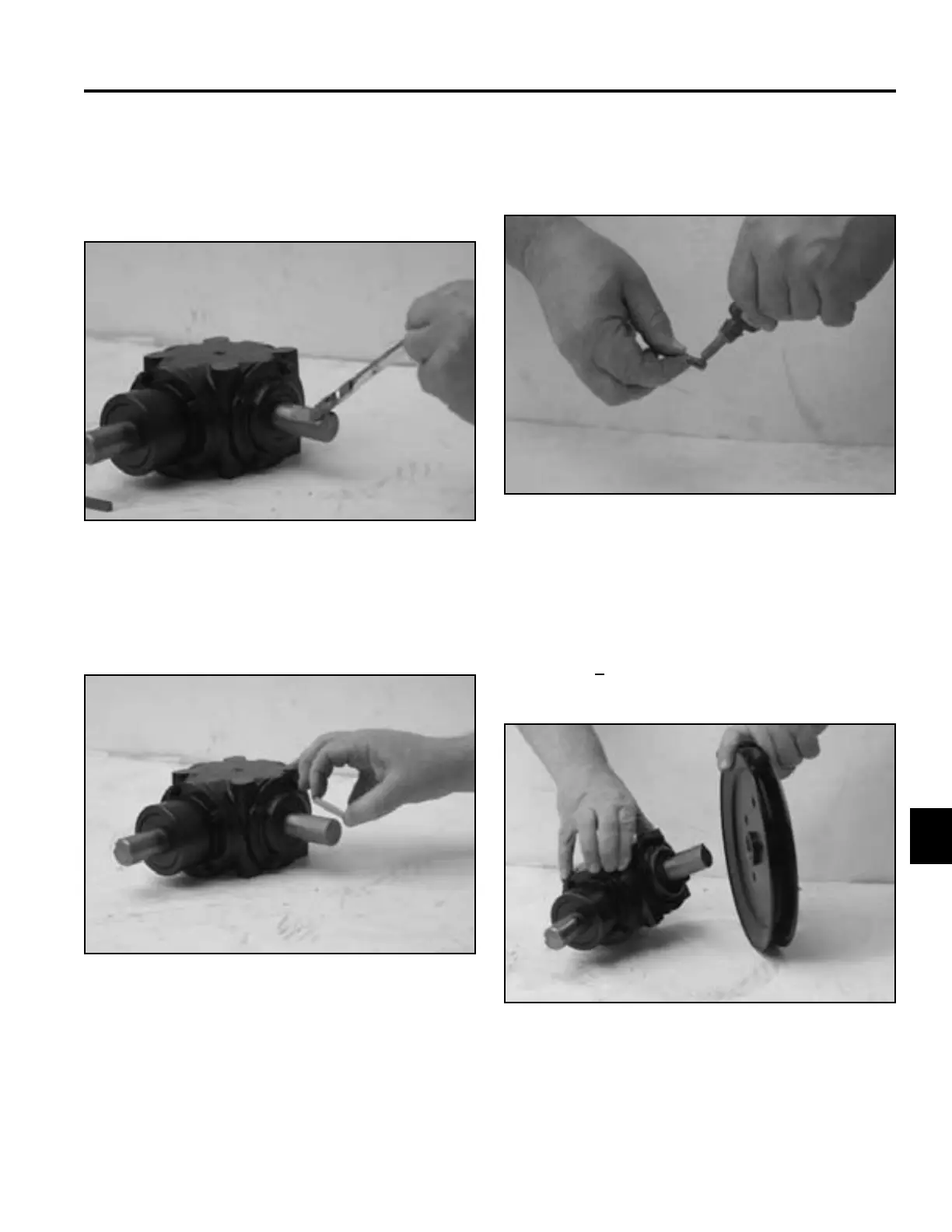

Gearbox Assembly Installation
1. Apply anti-seize compound to both gearbox as-
sembly shafts (Fig. 865).
3. Apply thread locking compound to all 4 pulley set
screws. Start the set screws into the pulley hubs
(Fig. 867).
Fig 865 PICT-3913a
Fig 867 PICT-3917a
Slide the gearbox drive pulley onto the gearbox drive
shaft (Fig. 868).
Note: Install the pulley so that the pulley hub is
fl ush + .03” (0.76mm) with the end of the
gearbox shaft.
2. Install a key into the gearbox drive shaft keyway
(Fig. 866).
Fig 868 PICT-3918a
Fig 866 PICT-3915a
To Next Page
