Pinion Shaft Rebuild

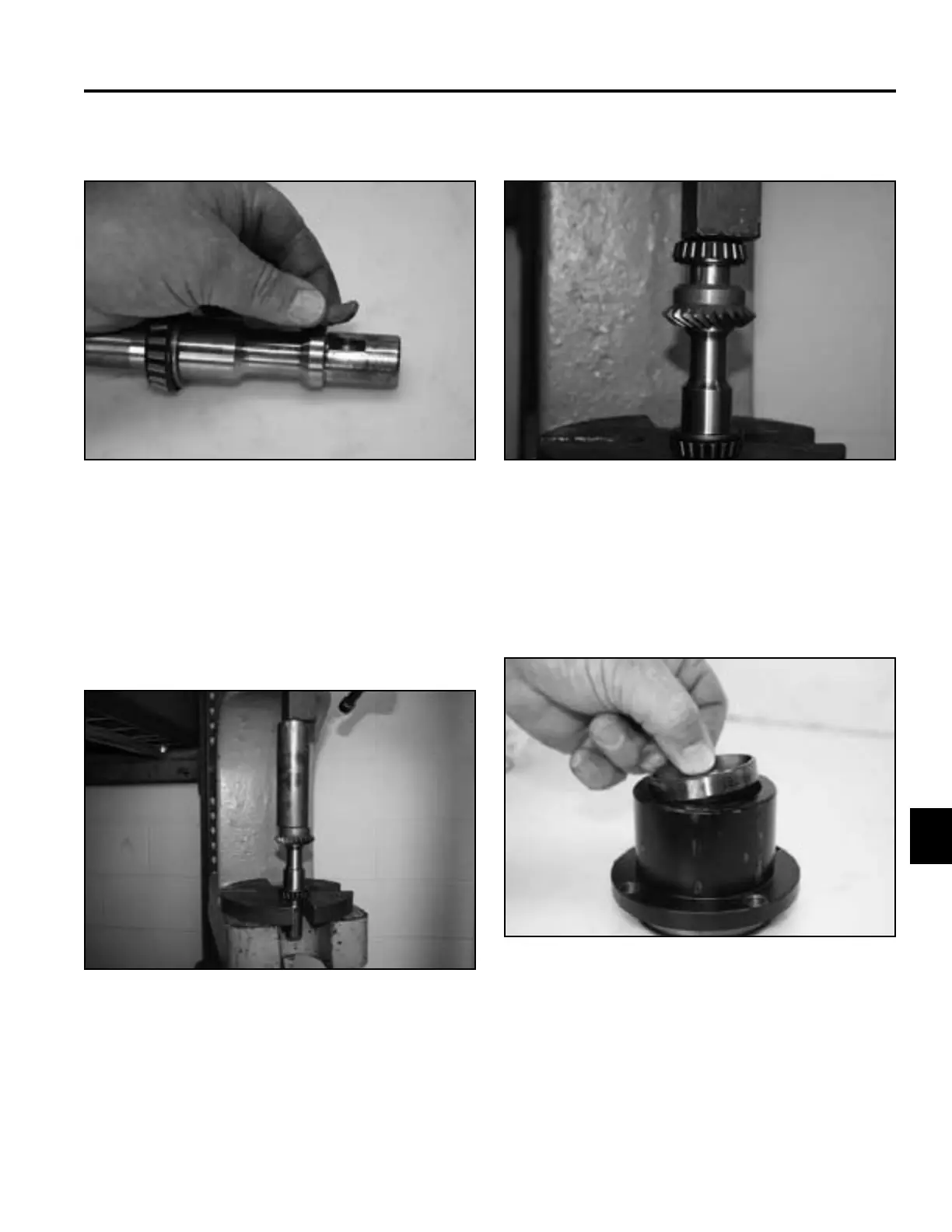

34. Install the key into the shaft keyway (Fig. 963). 37. Press the bearing onto the shaft (Fig. 965).
Fig 963 IMG-8519
Fig 965 IMG-8530
38. Press a new bearing race into the outer end of the
pinion housing (Fig. 966).
35. Place the cross shaft in a press with the installed
bearing down.
36. Align the keyway in the pinion gear with the key
installed in the shaft. Press the pinion gear onto the
shaft (Fig. 964).
Fig 966 IMG-8532
Fig 964 IMG-8529
