ELECTRICAL
6-5Z580/Z593/Z595 Diesel Service Manual
6
Detents inside the switch give it 3 positions: OFF, RUN
and START. The START position is spring loaded so the
cylinder automatically returns to RUN once the key is
released (Fig. 655).
Fig 655 mvc-166
Ignition Switch
Purpose
Location
How It Works

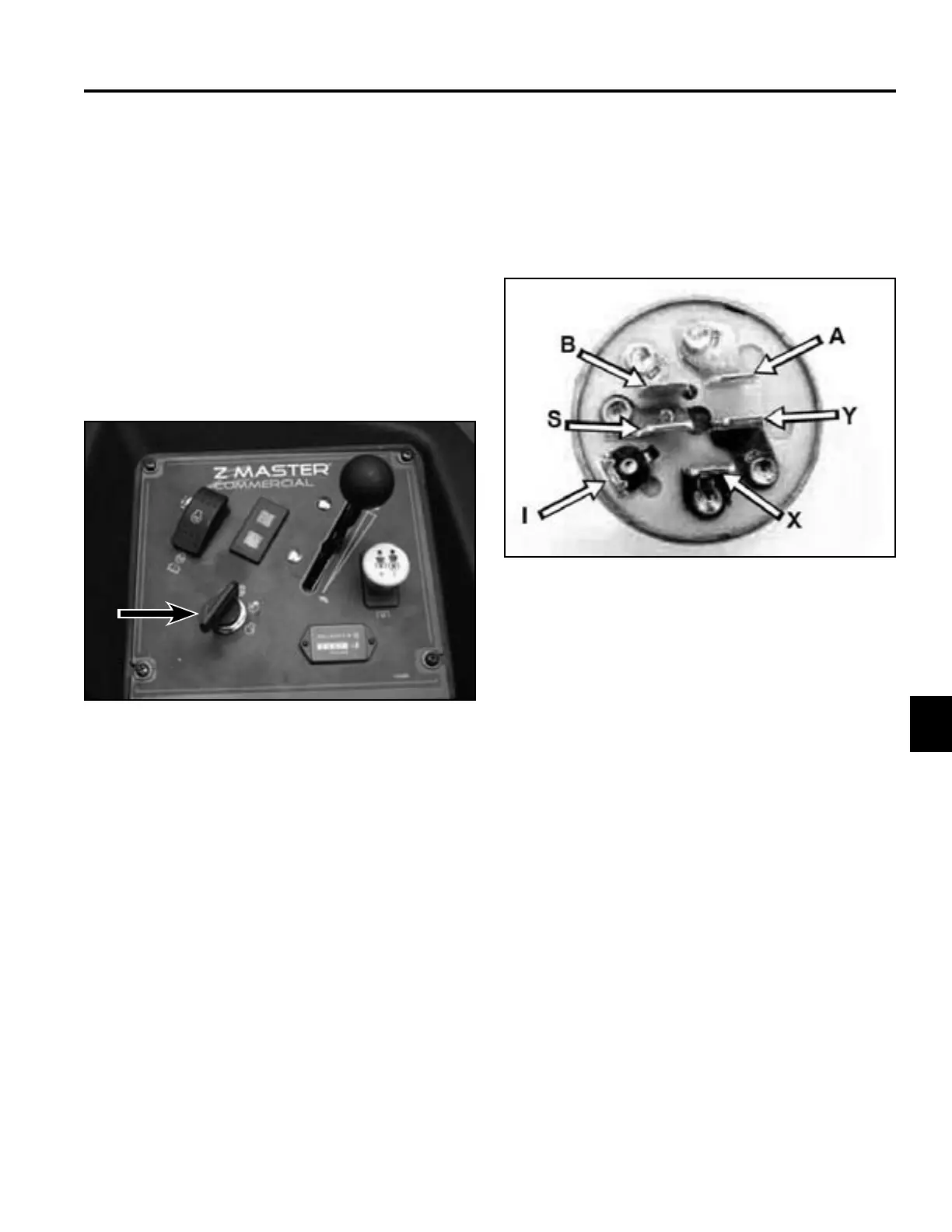

The ignition switch provides the proper switching for the
starter, accessories, and safety circuits.
The ignition switch is located on the control panel, to the
left side of the operator (Fig. 654).
Ignition Switch Wiring Connections
B = Battery voltage “in”
S = Starting Circuit
I = Safety Circuit, Gauges, and Start Circuit
A = Alternator/Charge Circuit
Y = Safety and Start Circuit
X = Safety/Start/Delay Module
Fig 654 PICT-4133
