CHASSIS
3-31Z580/Z593/Z595 Diesel Service Manual
3

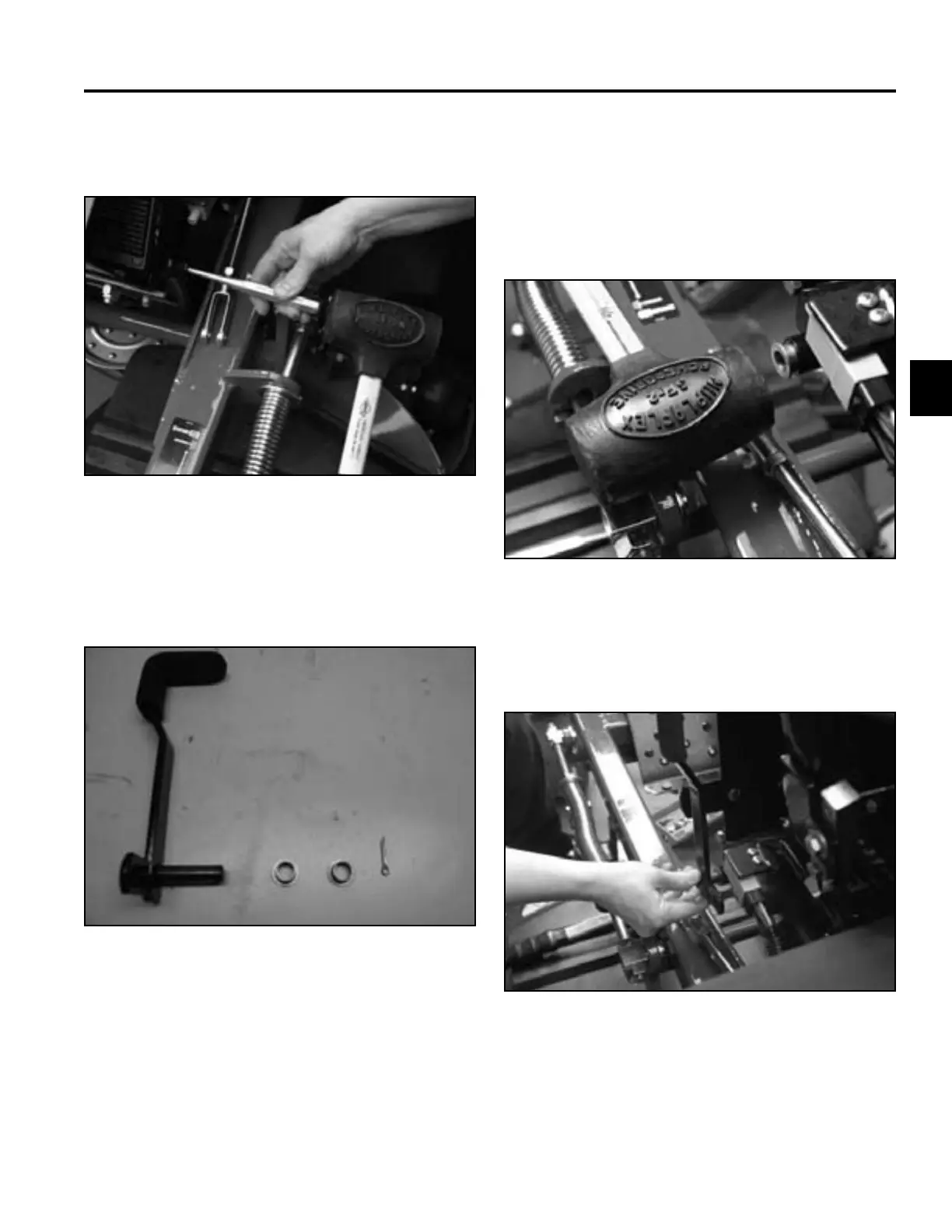

9. With a hammer and punch tap out the two pivot
bushings (Fig. 117).
Fig 117 PICT-2883
10. Inspect the brake shaft and bushings for excessive
wear. Replace any worn or damaged components
(Fig. 118).
Fig 118 PICT-2887
Brake Lever Installation
1. Raise the fl oor pan assembly.
2. Install the two bushings into the brake lever pivot
mounting hole (Fig. 119).
Fig 119 PICT-2891
3. Slide the brake lever assembly pivot through the
bushings (Fig. 120).
Fig 120 PICT-2892a
To Next Page
