CHASSIS
3-14 Z580/Z593/Z595 Diesel Service Manual
3

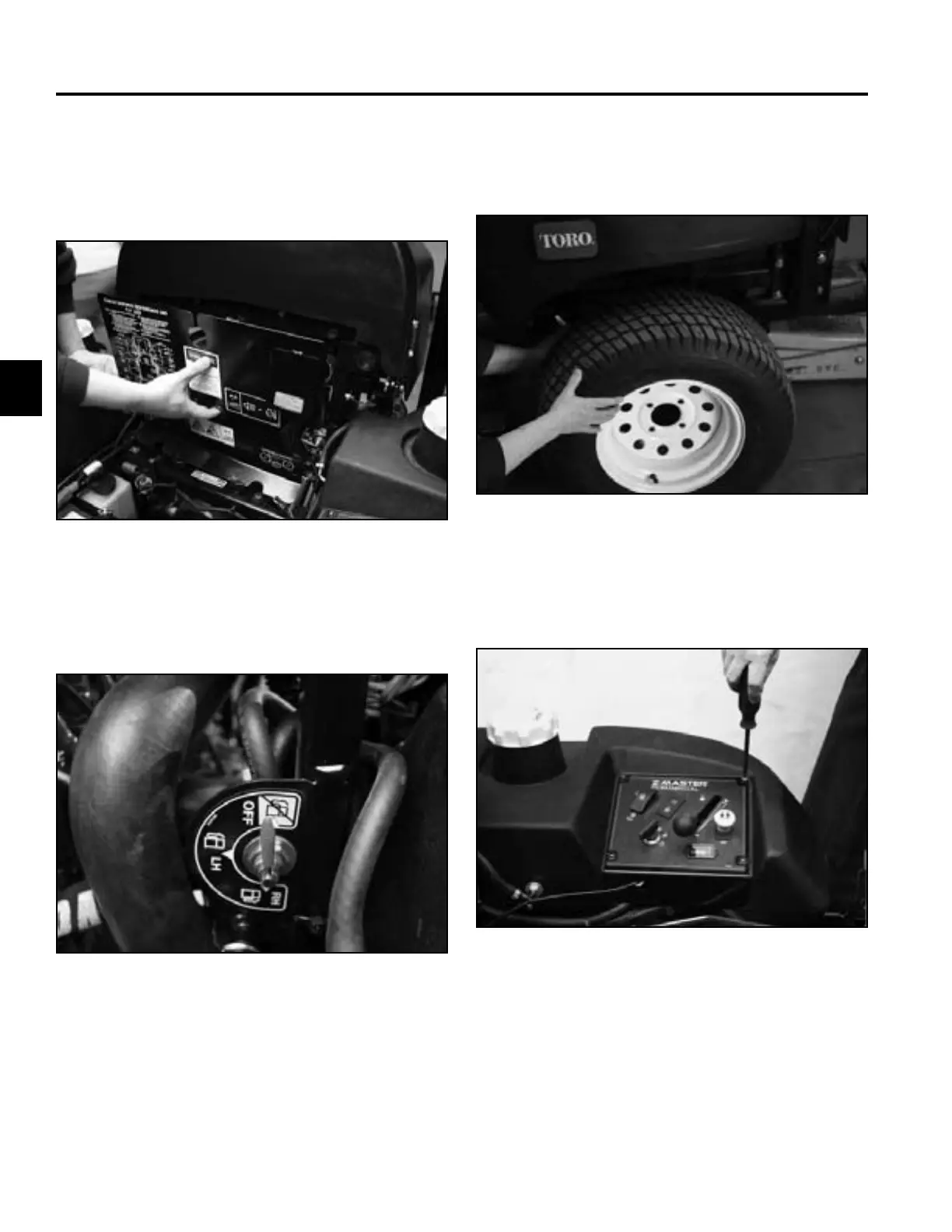

Left Side Fuel Tank Removal
1. Raise the seat and remove the front engine shield
(Fig. 052).
3. Disconnect the negative battery cable.
4. Remove the left rear wheel assembly (Fig. 054).
Fig 052 IMG_7751
Fig 054 IMG_7794
5. Remove the 4 screws and washers securing the
control panel to the fuel tank (Fig. 055).
2. Turn the fuel shut-off valve to the OFF position (Fig.
053).
Fig 055 IMG_7797
Fig 053 IMG_7896
