HYDRAULIC SYSTEM
4-30 Z580/Z593/Z595 Diesel Service Manual
4
The machine has a knob located under the seat to adjust
the tracking.
Important: Adjust the handle neutral and hydraulic
pump neutral before adjusting the tracking.
Refer to “Adjusting the Control Handle Neutral
Position” on page 4-25 and “Setting the
Hydrostatic Pump Neutral” on page 4-27.
1. Start the engine.
2. Push both control levers forward the same distance.
3. Check if the machine pulls to one side. If it does,
stop the machine and set the parking brake.
4. Unlatch the seat and tilt the seat forward to access
the tracking knob.
Note: Determine the left and right sides of the
machine from the normal operating position.
5. To make the machine go right, turn the knob towards
the right side of the machine (Fig. 337).
6. To make the machine go left, turn the knob towards
the left side of the machine (Fig. 338).

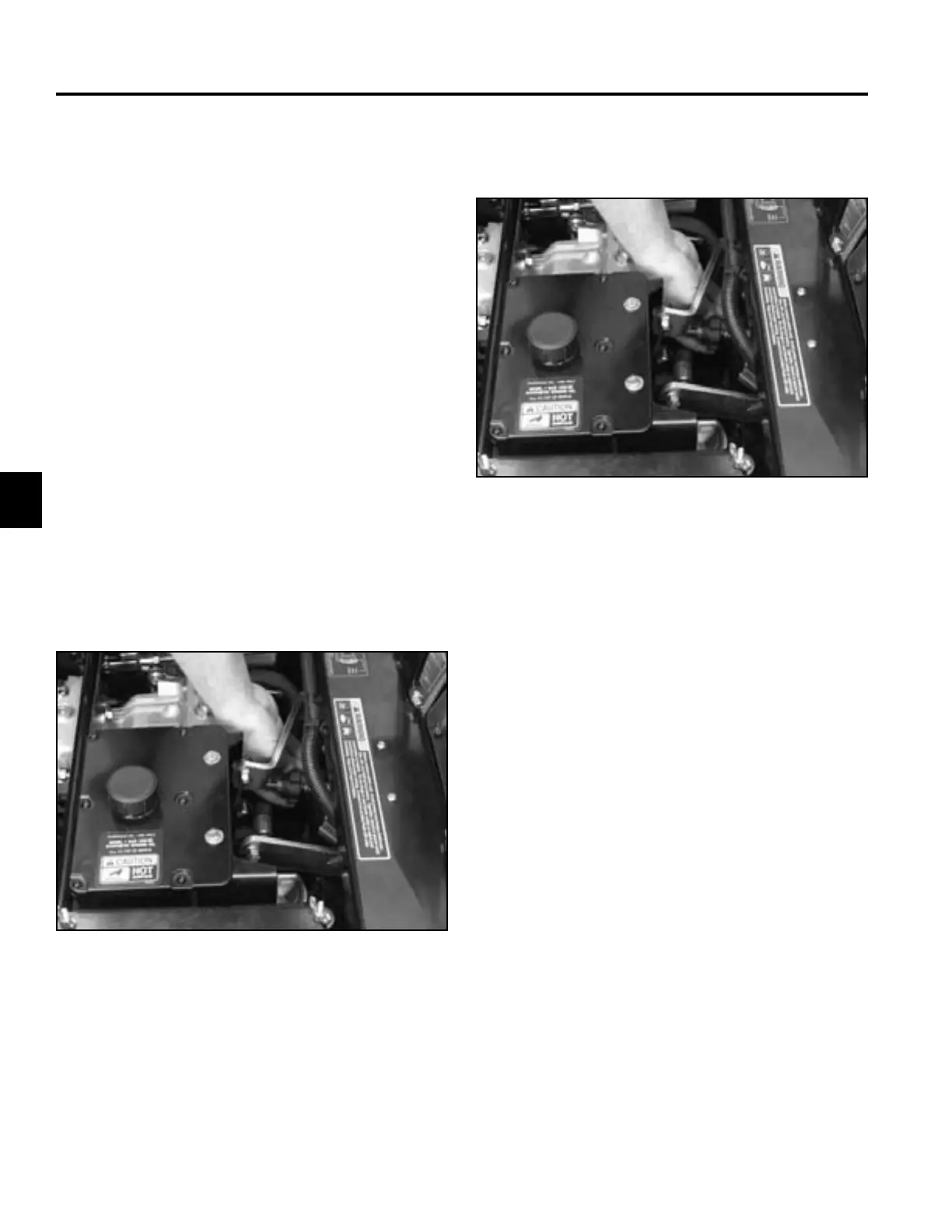

Fig 337 PICT-3475a
Fig 338 PICT-3475a
7. Repeat adjustment until the tracking is correct.
Adjusting the Tracking
