ENGINE
5-50 Z580/Z593/Z595 Diesel Service Manual
5

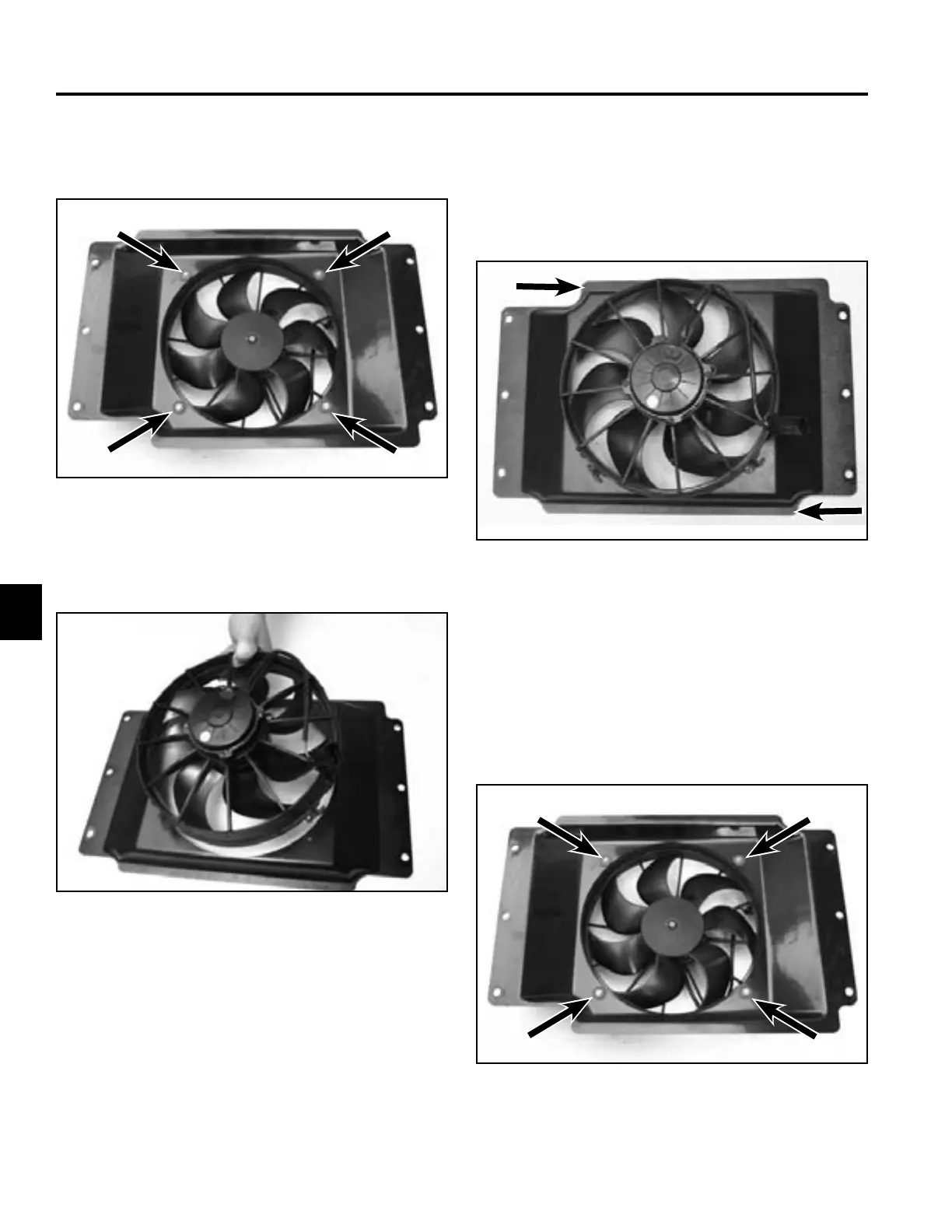

Cooling Fan Installation
4. Remove the 4 bolts, washers and nuts securing the
cooling fan to the shroud (Fig. 591).
1. Position the cooling fan to the back side of the
shroud. Position the fan onto the shroud as shown
(Fig. 593).
Fig 591 PICT-3756
Fig 593 PICT-3760a
2. Install 4 bolts, washers and nuts securing the cooling
fan to the shroud (Fig. 594).
A. Front of the machine side with large fl ange and cut-
out
B. Rear of the machine
C. Fan plug location
5. Remove the cooling fan from the shroud (Fig. 592).
Fig 594 PICT-3756
Fig 592 PICT-3758
C
C
A
A
B
B
