MOWER DECKS
7-72 Z580/Z593/Z595 Diesel Service Manual
7

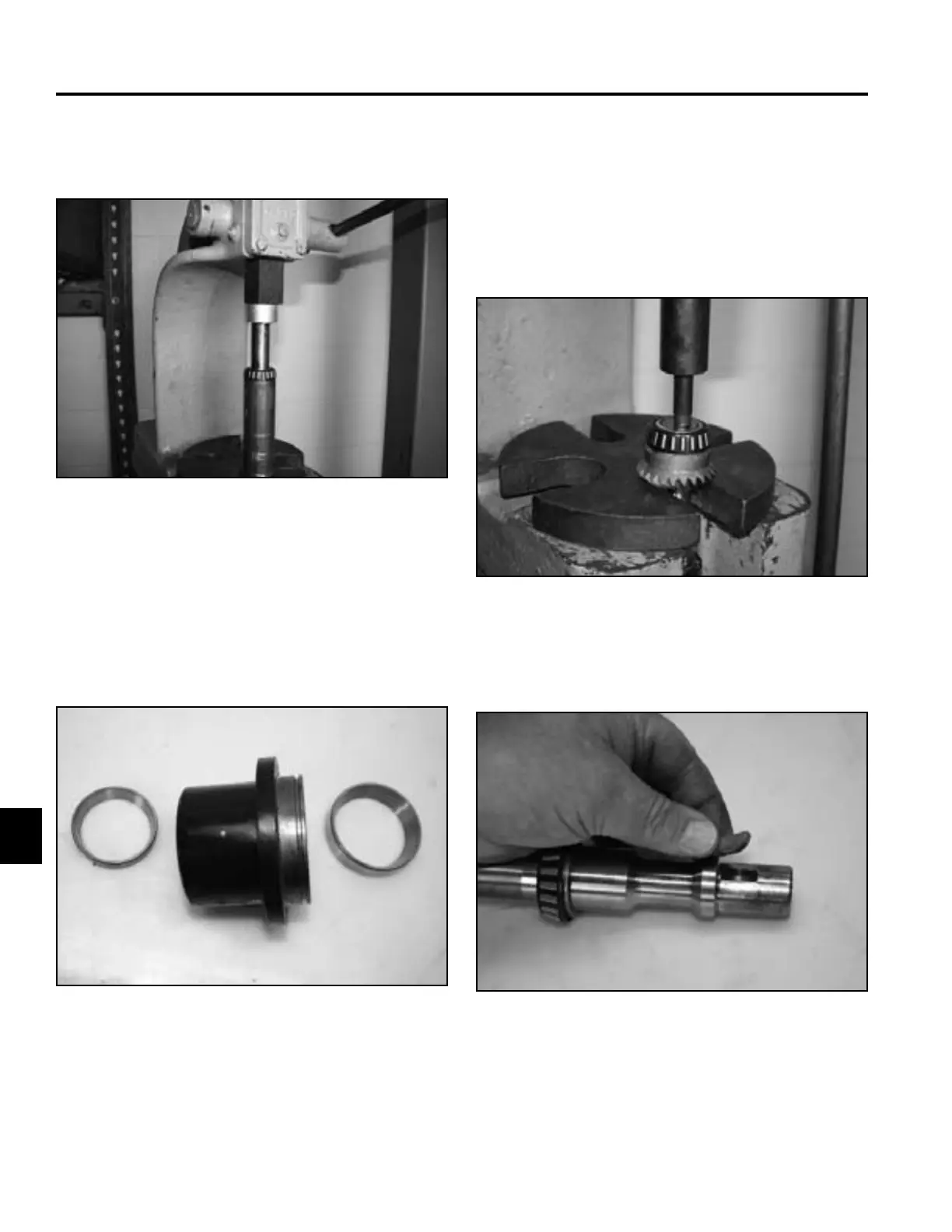

Cross Shaft Teardown
21. Place the shaft assembly in a press and press the
bearing off the shaft (Fig. 951).
23. Place the cross shaft in a press with the pinion gear
bearing facing up.
24. Press the pinion gear and bearing off the cross shaft
(Fig. 953).
Fig 951 IMG-8509
Fig 953 IMG-8517
25. Remove the key from the shaft keyway (Fig. 954).
22. Place the pinion housing in a vise and remove the
inner and outer bearing races from the housing (Fig.
952).
Note: The inner race and housing must be heated to
remove the races.
Fig 954 IMG-8519
Fig 952 IMG-8514
