MOWER DECKS
7-40 Z580/Z593/Z595 Diesel Service Manual
7

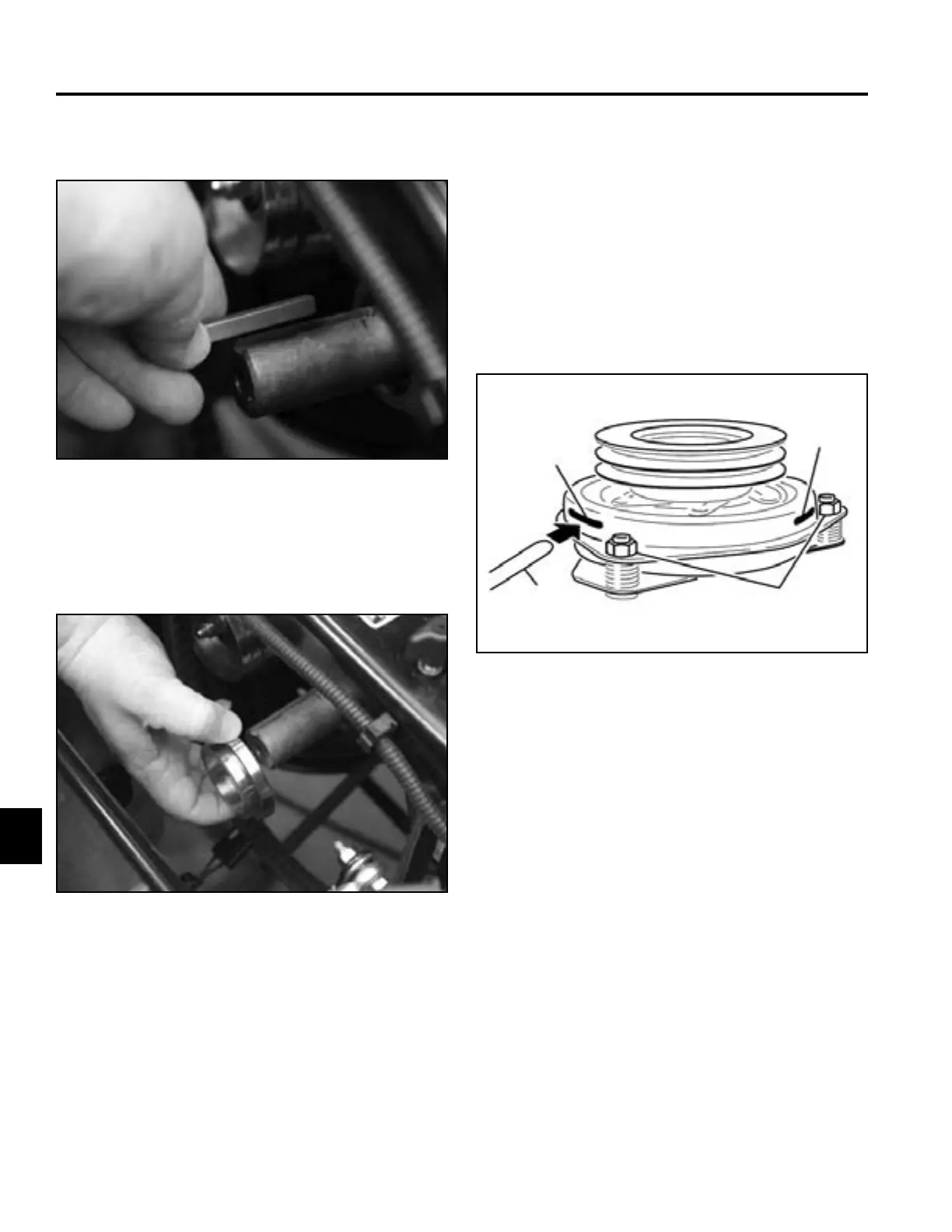

Fig 835 fi g. 54 G007168
A. Slot C. Feeler gauge
B. Adjusting nut
3. Repeat this for the remaining slots.
4. Check each slot again and make slight adjustments
until the feeler gauge fi ts between the rotor and
armature with very slight contact between them.
A
A
B
C
Electric PTO Clutch Installation
Ogura Clutch
1. Insert a 0.015”–0.021” (0.381–0.533mm) feeler
gauge through one inspection slot in the side of the
electric PTO clutch. Make sure it is between the
armature and the rotor friction surfaces (Fig. 54).
2. Tighten the lock nuts until there is slight binding on
the feeler gauge but it can be moved easily within
the air gap (Fig. 835).
13. Remove the clutch adapter from the stub shaft (Fig.
834).
Fig 834 PICT-3954a
12. Remove the key from the stub shaft (Fig. 833).
Fig 833 PICT-3955
