Toro Diesel Z Master User Manual

CHASSIS
3-20 Z580/Z593/Z595 Diesel Service Manual
3

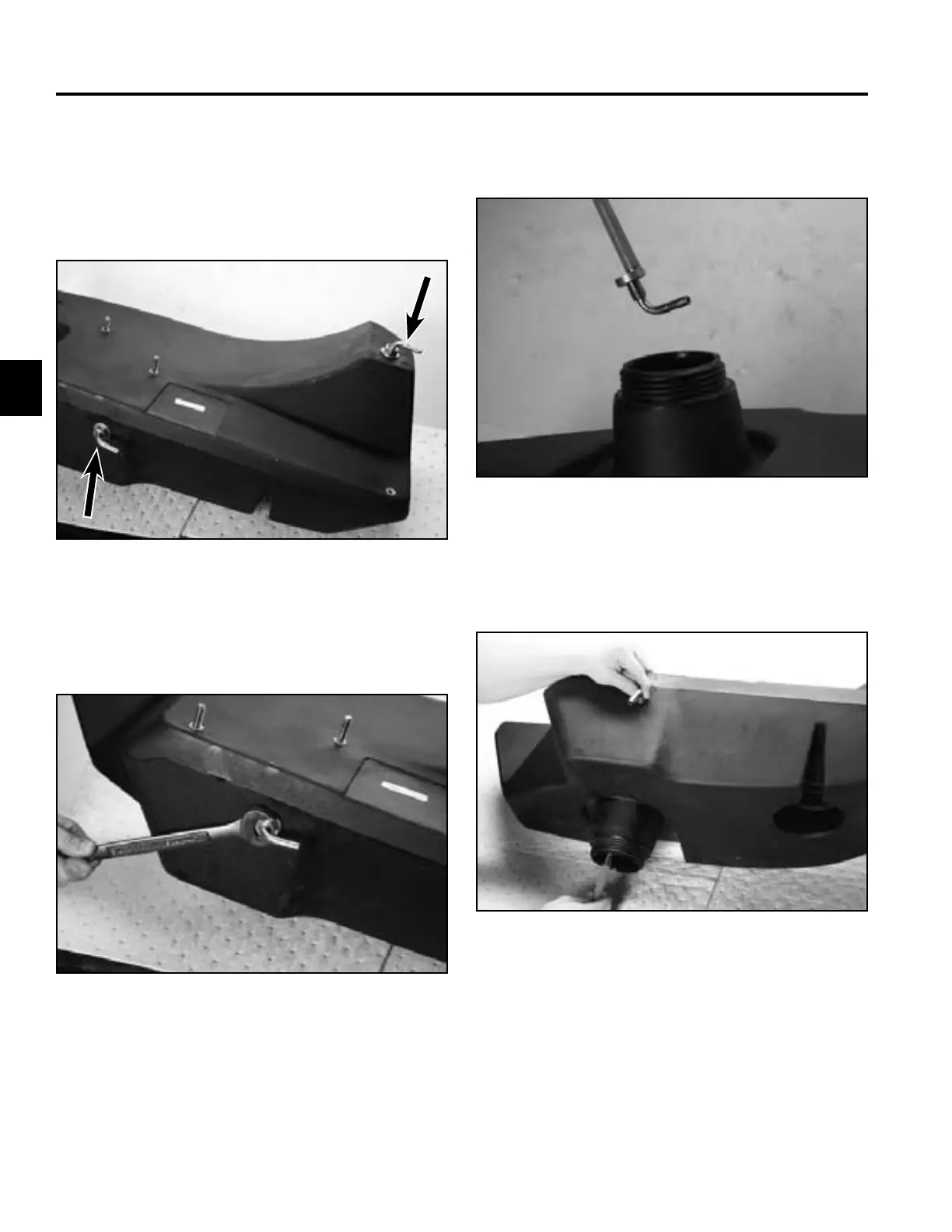

Fuel Tank Fitting Replacement
There are 2 fuel fi ttings located on each of the fuel tanks.
The following procedure can be used to replace any of
the fi ttings (Fig. 075).
2. Using a magnet, remove the fi tting from the inside of
the fuel tank (Fig. 077).
Fig 075 IMG_7771
Fig 077 IMG_7774a
3. Using a magnet, install a fuel tank fi tting by inserting
it through the fuel tank opening (Fig. 078).
1. Remove the nut and washer securing the fi tting to
the fuel tank (Fig. 076).
Fig 078 IMG_7775
Fig 076 IMG_7772

Toro Diesel Z Master Specifications

General

Fuel Type	Diesel
Transmission	Hydrostatic
Engine Type	Diesel
Cutting Width	60 inches
Fuel Tank Capacity	12 gallons
