08/2012
4-21
WorkCentre 5021/5019
REP 6.1.1
Repairs and Adjustments
Initial Issue
REP 6.1.1 BTR Roll
Parts List on PL 6.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Open the L/H Cover.

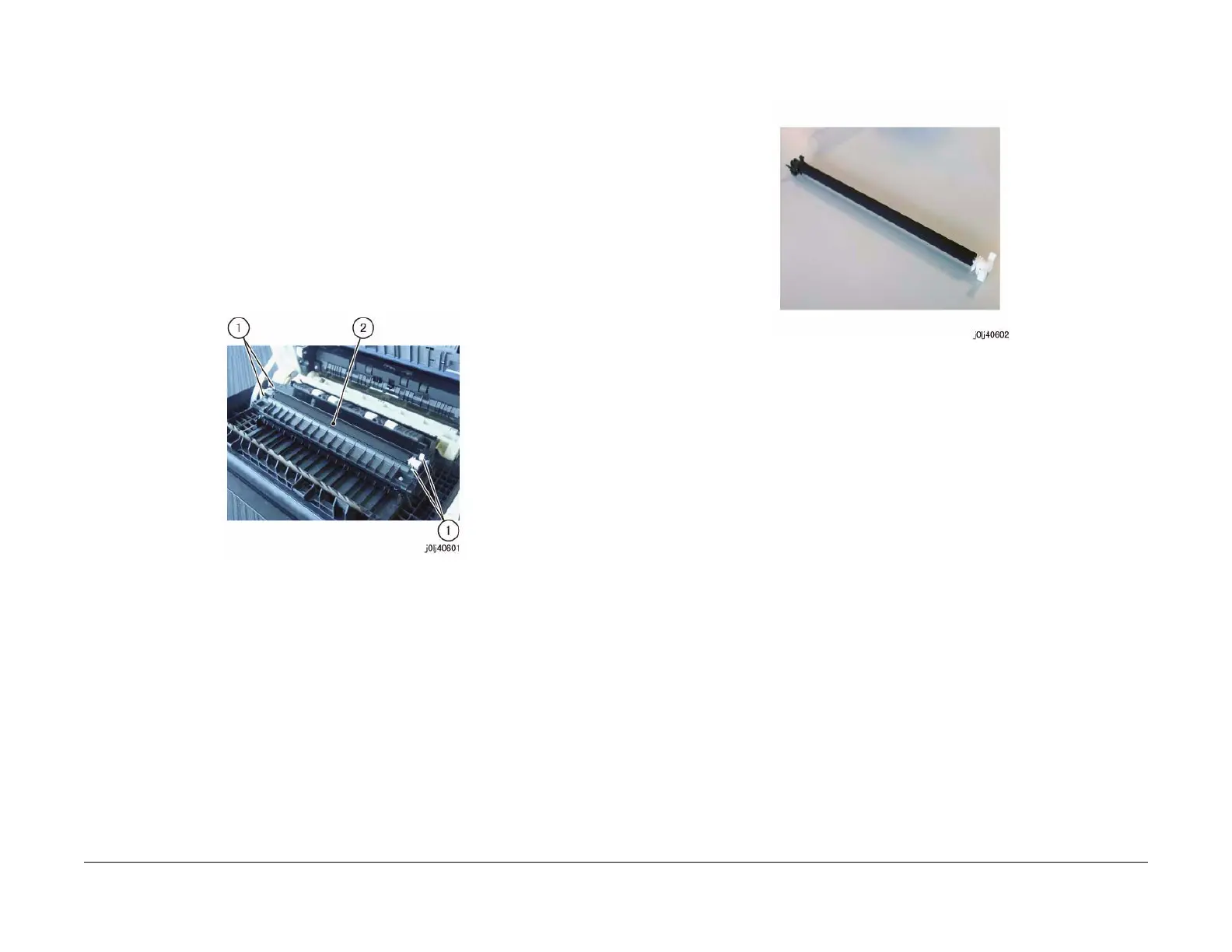

2. Remove the BTR Roll. (Figure 1)
(1) Release the hook (x4) of the bearing.
(2) Remove the BTR Roll.
Figure 1 j0lj40601
Reference: This shows the removed BTR Roll. (Figure 2)
NOTE: As the bearing is not secured to the BTR Roll, be careful so as not to allow it to
drop.
Figure 2 j0lj40602
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
'Chain Link : 950-800'
