08/2012
5-50
WorkCentre 5021/5019
PL 56.6
Initial Issue
Parts List

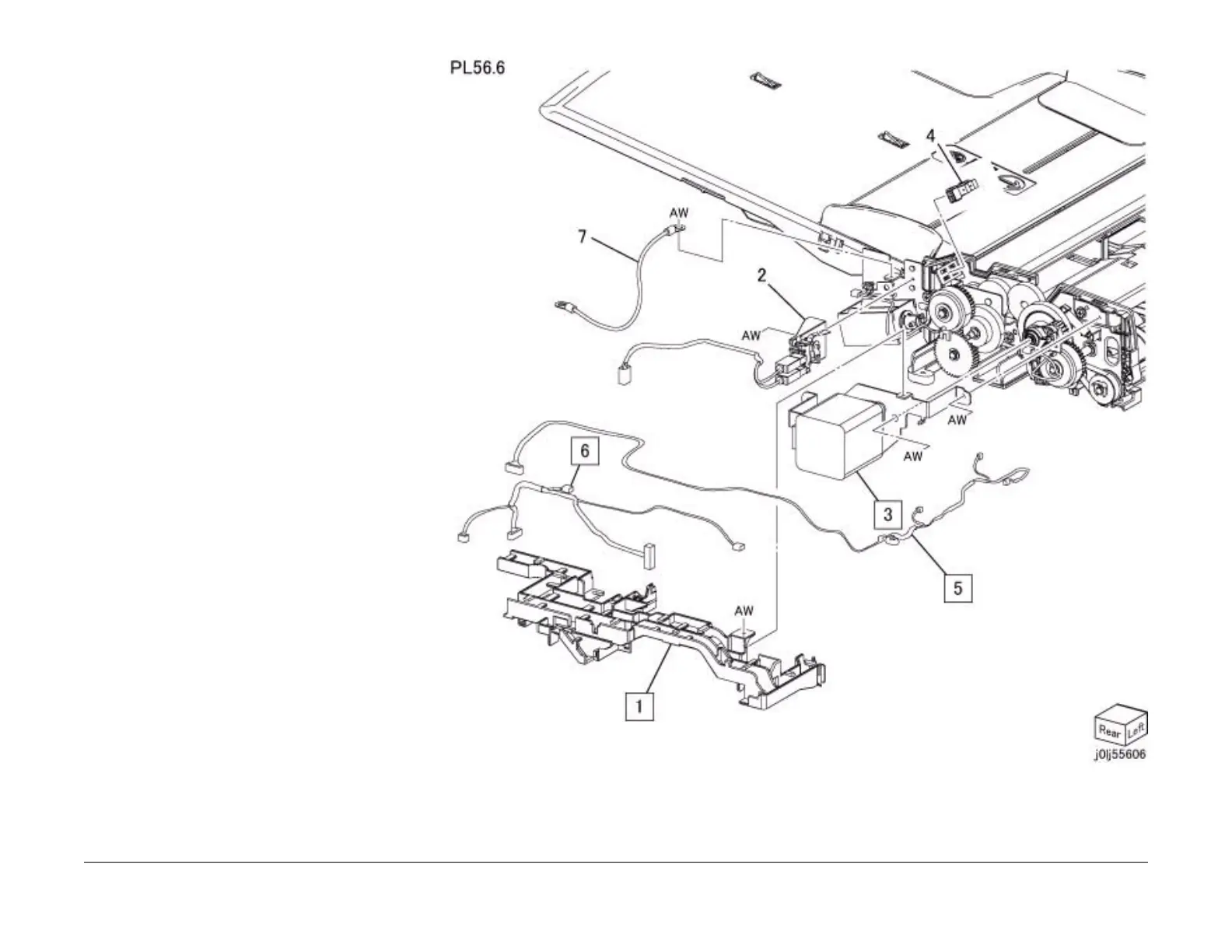

PL 56.6 DADF Feed Motor,Harness
Guide
Item Parts No Description A.C.
1 032E 40210 Harness Guide (REP 56.6.1)22G1
2 110K 17140 DADF Feeder Cover Interlock
Switch 22G2
3 127K 66690 DADF Feed Motor (REP 56.6.2)
22G3
4 930W 00121 DADF Document Set Sensor 22G4
5 952K 03531 Wire Harness (Sensor)(REP
99.1.1)22G5
6 952K 03510 Wire Harness (Motor/Clutch)(REP
99.1.1)22G6
7 117K 38960 Ground Wire 22G7
