08/2012
5-24
WorkCentre 5021/5019
PL 10.1
Initial Issue
Parts List

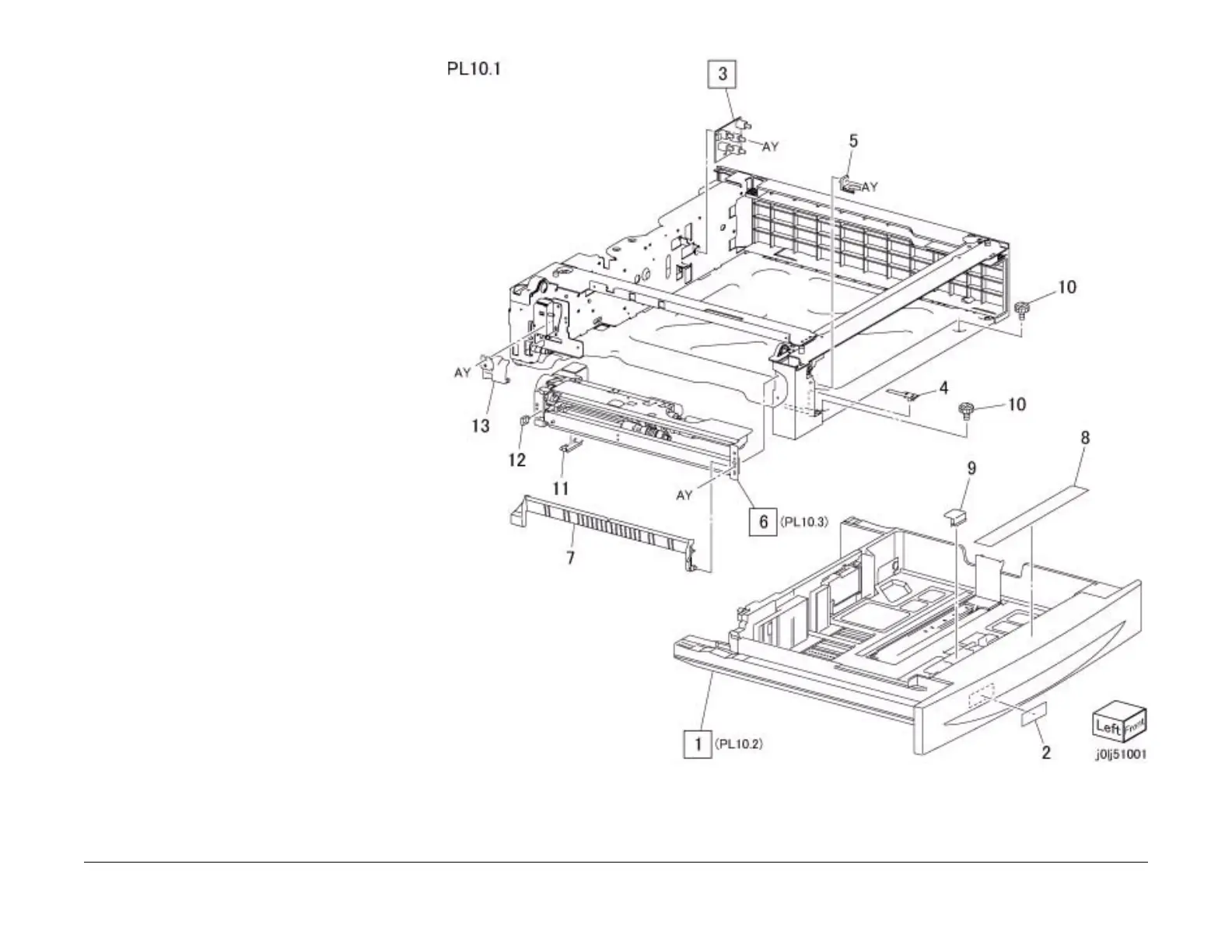

PL 10.1 Tray 2 ,Feeder
Item Parts No Description A.C.
1 050K 64422 Tray 2 (PL 10.2)(REP 99.1.1)50D1
2 – Label (No.2) 50D2
3 110K 11680 Tray 2 Paper Size Switch(REP
99.1.1)50D3
4 014E 51110 Tray Spacer 50D4
5 003E 61510 Tray Stopper 50D5
6 059K 79620 Tray 2 Feeder (PL 10.3) (REP
10.1.1, REP 99.1.1)5040
7 054K 27520 Feed Out Chute 50D6
8 – Label (Instruction) 50D7
9 014E 59990 Slide Lock (Alternate) 50D8
– 014E 56640 Slide Lock (Alternate) 50D8
10 826E 07210 Docking Screw 50D9
11 – Cover 50DB
12 – Holder 50DC
13 – Feeder Connector Cover 50DD
