08/2012
5-22
WorkCentre 5021/5019
PL 9.1
Initial Issue
Parts List

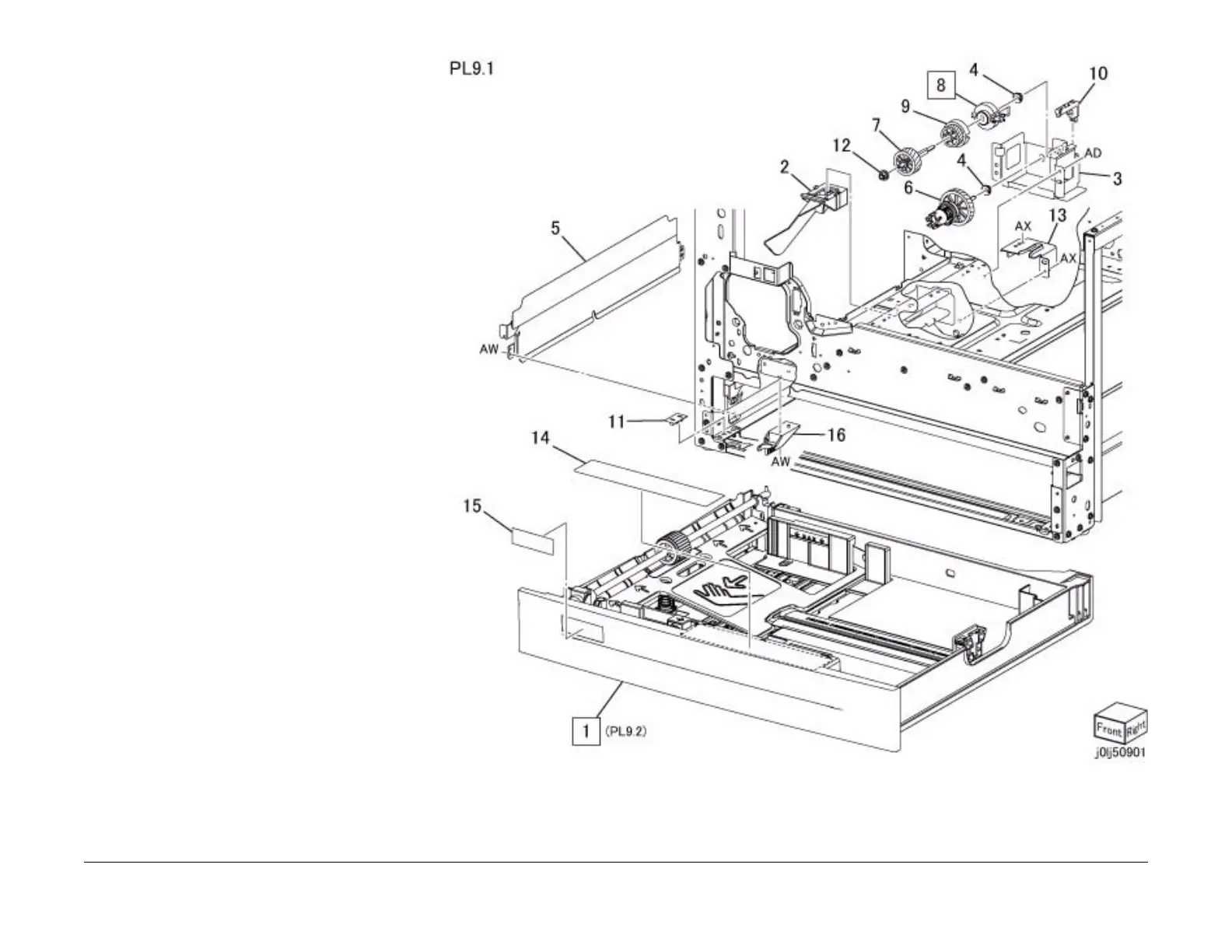

PL 9.1 Tray 1,Tray Drive
Item Parts No Description A.C.
1 050K 69380 Tray 1 (PL 9.2) (REP 9.1.2)5010
2 802K 63710 Tray 1 No Paper Sensor 5013
3 – Drive Bracket 50B1
4 013E 41230 Bearing 50B2
5 054K 48460 L/H Chute 50B3
6 005K 83551 Tray 1 Coupling and Gear50B4
7 006K 89940 Shaft and Gear 50B5
8 121K 52340 Tray 1 Feed Clutch (REP 9.1.1,
REP 99.1.1)50B6
9 807E 40920 Helical Gear (28T) 50B7
10 032E 40350 Harness Guide 50B8
11 014E 45350 Spacer 50B9
12 013E 41230 Bearing 50BB
13 – Tray Support Bracket 50BC
14 – Instruction Label 50BD
15 – Label (No.1) 50BE
16 003E 60952 Tray Front Stopper 50BF
