Xerox WorkCentre 5021 Service Documentation

08/2012
5-34
WorkCentre 5021/5019
PL 13.3
Initial Issue
Parts List

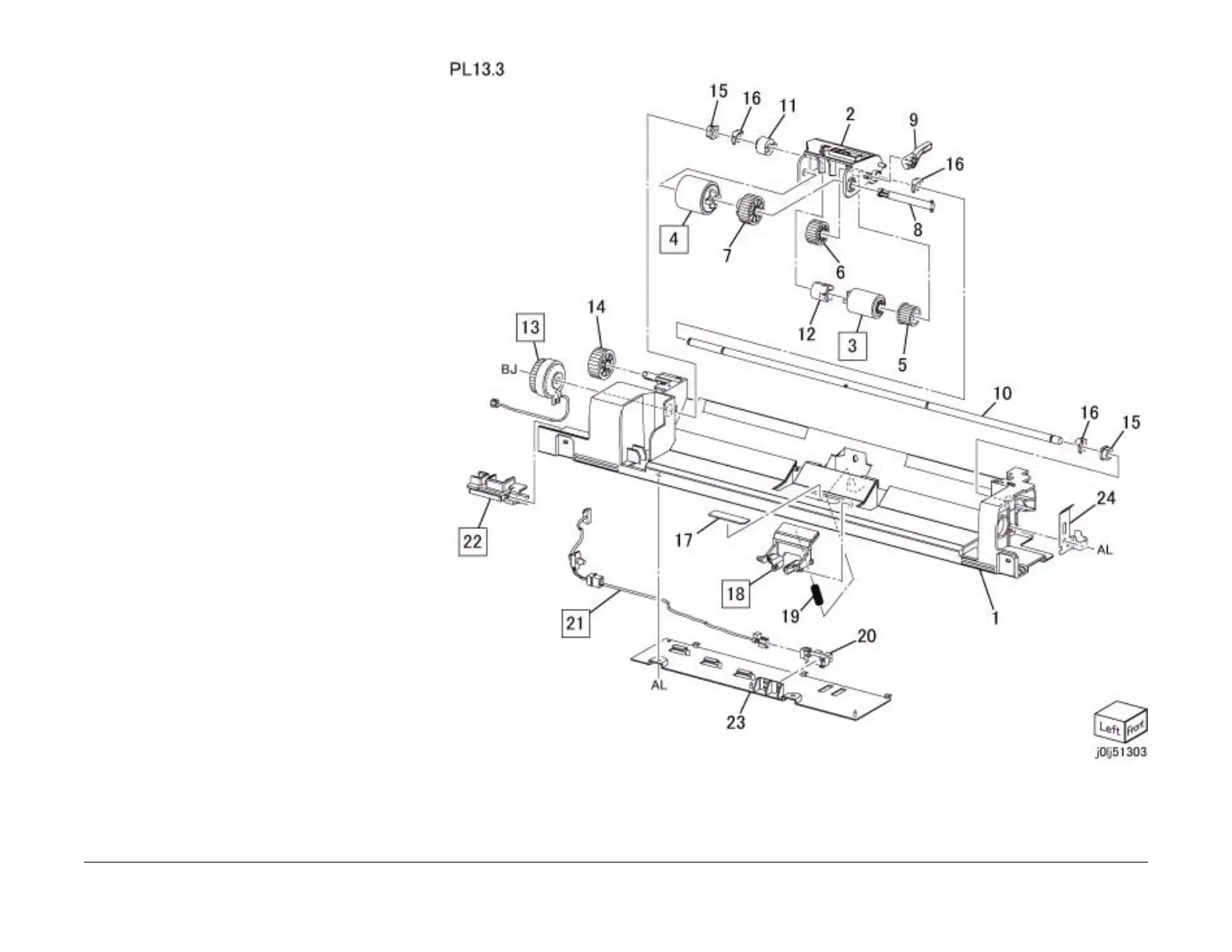

PL 13.3 MSI Lower Feeder
Item Parts No Description A.C.
1 – MSI Lower Frame 51D1
2 019E 84002 Nudger Holder 51D2
3 022K 77450 MSI Feed Roll (REP 13.3.1)5132
4 022K 77460 MSI Nudger Roll (REP 13.3.1)5131
5 007K 18660 Oneway Clutch Gear (30T)51D3
6 807E 39610 Gear (33T) 51D4
7 807E 39600 Gear (46T) 51D5
8 806E 37300 Shaft 51D6
9 803E 13180 Stopper Paper Lock 51D7
10 – Shaft 51D8
11 005K 83510 Friction Clutch 51D9
12 005K 83520 Oneway Clutch 51DB
13 121K 52220 MSI Feed Clutch(REP 99.1.1)5136
14 807E 39620 Gear (18T) 51DC
15 413W 11660 Bearing 51DD
16 – KL-Clip 51DE
17 019E 84010 Bottom Pad 51DF
18 019K 12820 MSI Retard Pad (REP 13.3.2)5233
19 899E 01340 Spring 51DG
20 930W 00123 MSI No Paper Sensor 51DH
21 962K 68851 MSI Wire Harness(REP 99.1.1)
51DJ
22 848E 85862 Connector Cover(REP 99.1.1)
51DK
23 848E 85940 MSI Lower Cover 51DL
24 815E 77090 Ground Plate 51DM
