08/2012
5-36
WorkCentre 5021/5019
PL 14.2
Initial Issue
Parts List

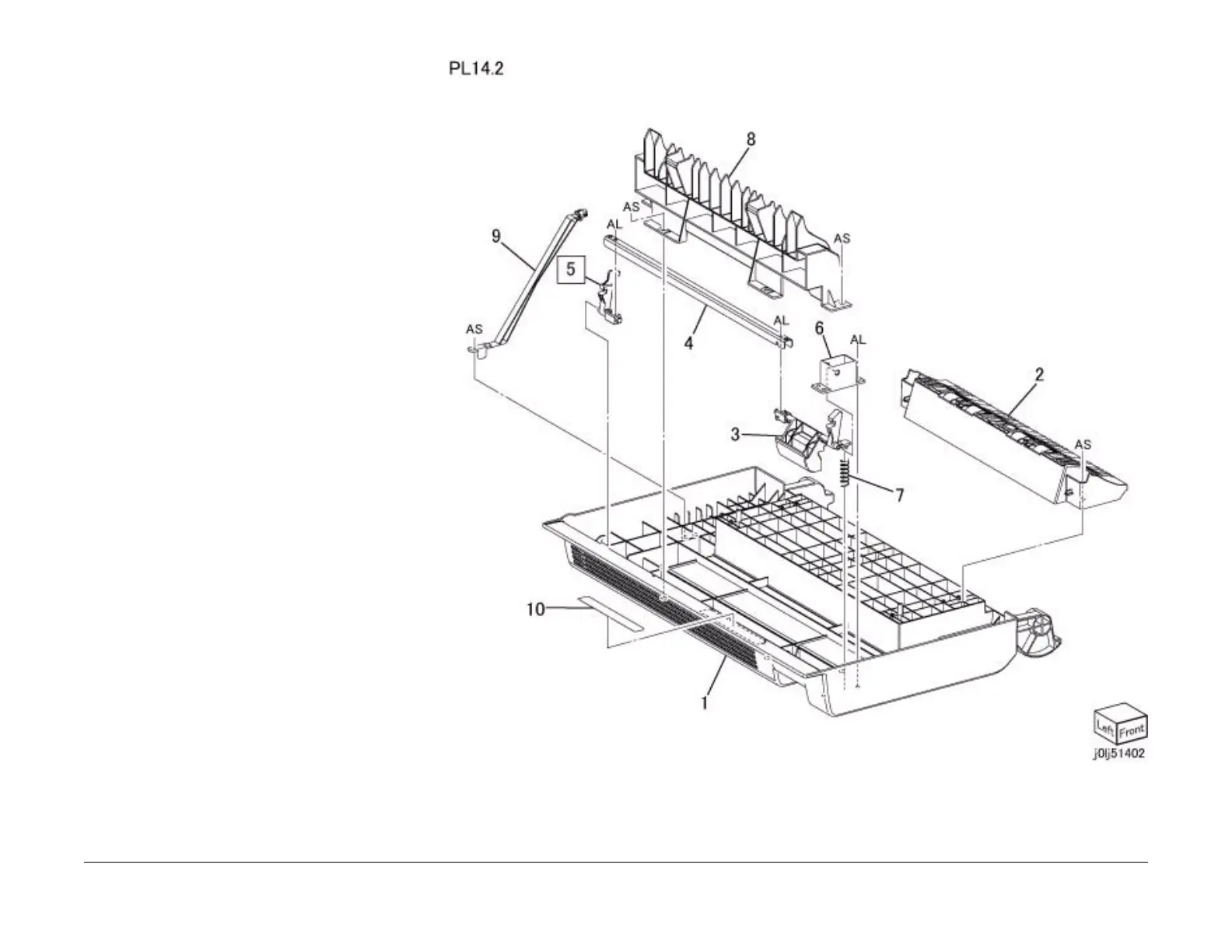

PL 14.2 Simplex L/H Cover
Item Parts No Description A.C.
1 – L/H Cover 52C1
2 054K 48270 Registration Pinch Chute 52C2
3 011E 26670 Front Latch Lever 52C3
4 815E 75070 Latch Plate 52C4
5 011E 26691 Rear Latch Lever(REP 99.1.1)
52C5
6 868E 78150 Front Latch Support 52C6
7 809E 99540 Spring 52C7
8 054E 49700 L/H Cover Upper Chute 52C8
9 868E 77080 L/H Cover Support 52C9
10 898E 45921 Caution Label 52CB
