Xerox WorkCentre 5021 Service Documentation

08/2012
5-15
WorkCentre 5021/5019
PL 3.2
Parts List
Initial Issue

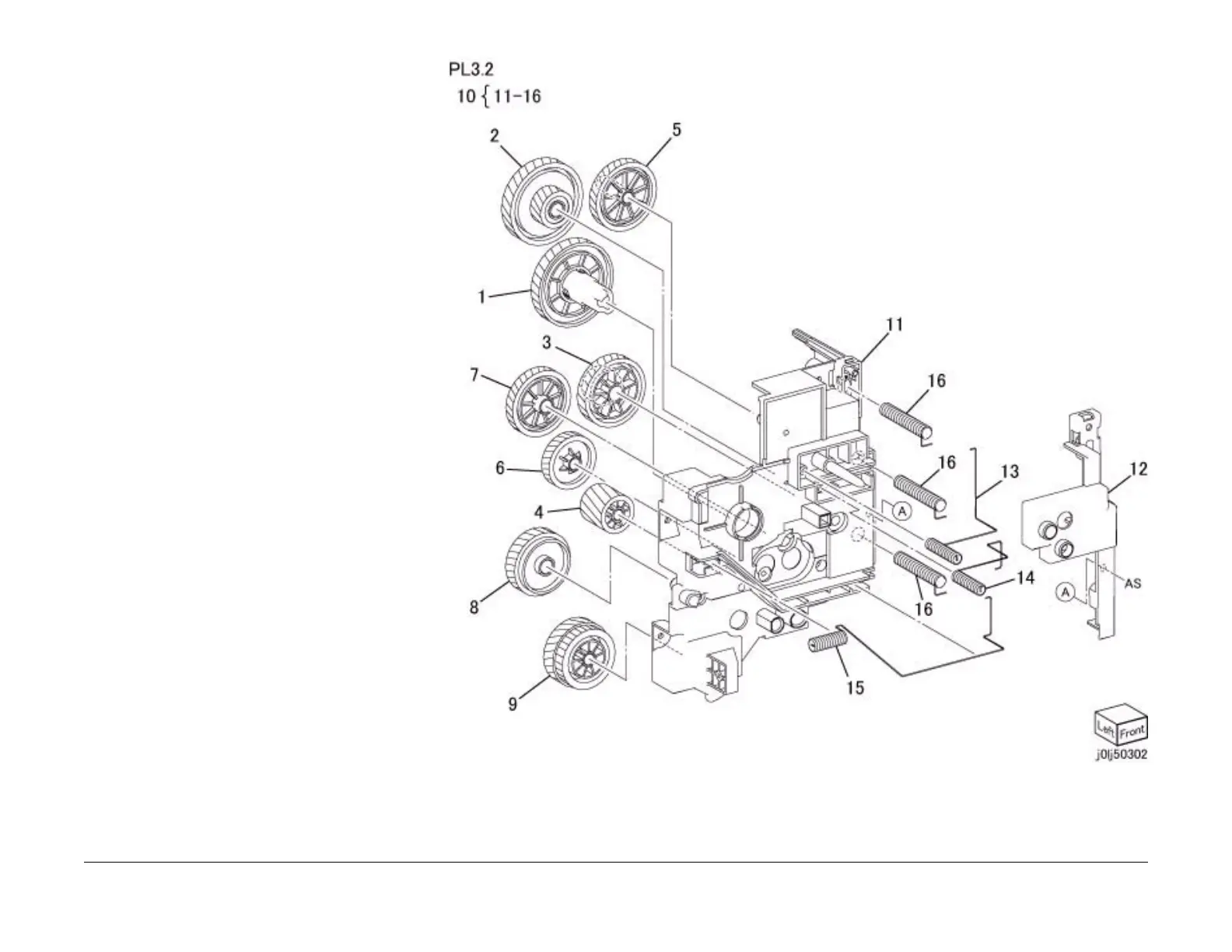

PL 3.2 Main Drive Housing
Item Parts No Description A.C.
1 005K 83610 Drum Coupling and Gear30C1
2 807E 39180 Helical Gear (76/33T) (Identification
display : X1)30C2
3 807E 39200 Helical Gear (63/18T) (Identification
display : P1)30C3
4 807E 39230 Helical Gear (25T) (Identification
display : P4)30C4
5 807E 39250 Helical Gear (63T) (Identification
display : F1)30C5
6 807E 39220 Helical Gear (36T) (Identification
display : P3)30C6
7 807E 39210 Helical Gear (45T) (Identification
display : P2)30C7
8 807E 39240 Helical Gear (43T) (Identification
display : P5)30C8
9 807E 39580 Helical Gear (44/27T) (Identification
display : P6)30C9
10 848K 67530 Main Drive Housing (Item 11-16)
30CB
11 – Main Drive Housing (P/O Item 10)
30CC
12 848E 84830 Conductor Cover 30CD
13 130E 16130 BCR Conductor 30CE
14 130E 16140 Deve. Conductor 30CF
15 130E 16150 BTR Conductor 30CG
16 130E 16160 HV Conductor 30CH
