08/2012
4-63
WorkCentre 5021/5019
REP 56.1.2, REP 56.2.1
Repairs and Adjustments
Initial Issue

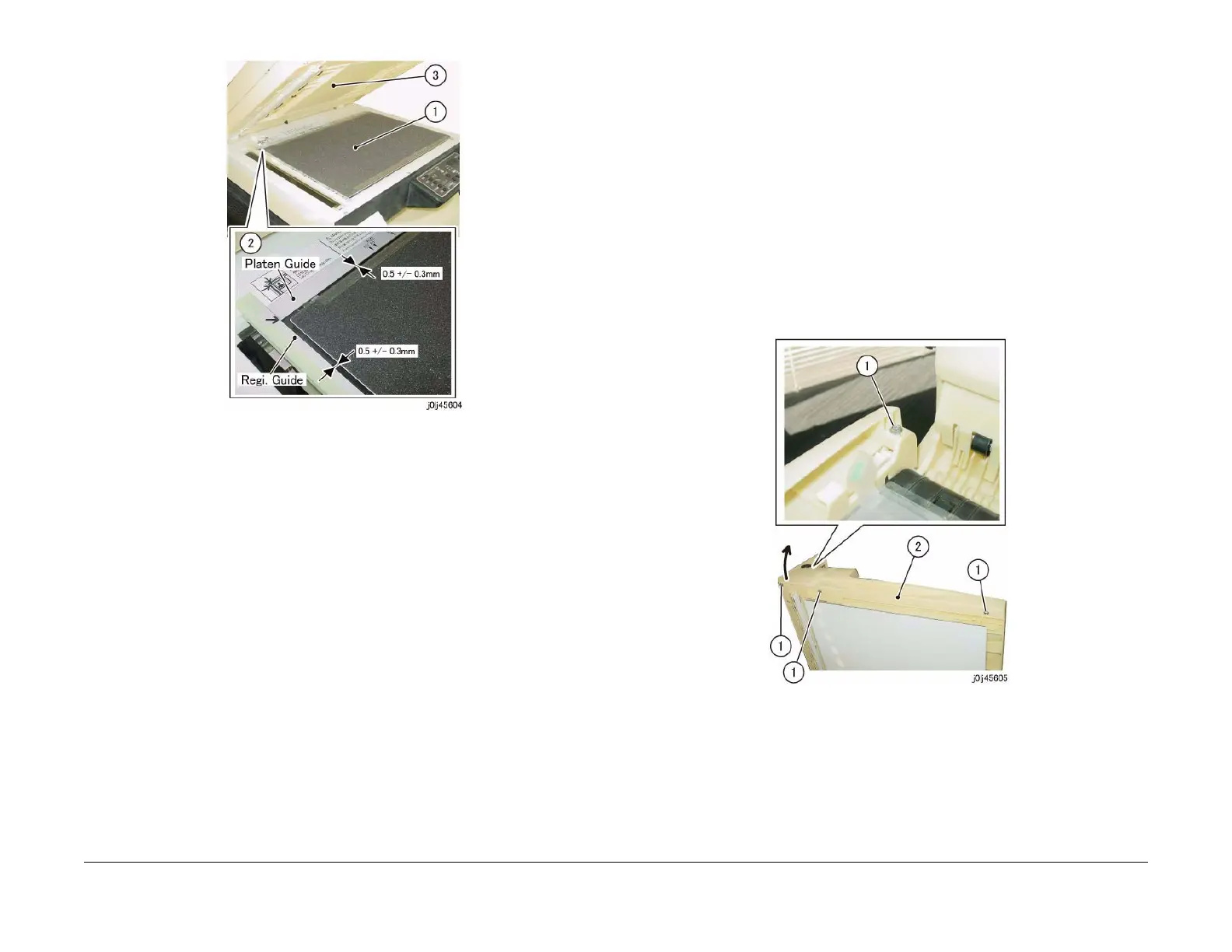

Figure 2 j0lj45604
REP 56.2.1 DADF Front Cover
Parts List on PL 56.2
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Open the Upper Feeder.
2. Open the DADF.
3. Remove the DADF Front Cover. (Figure 1)
(1) Remove the Tapping Screw (x4).
(2) Remove the DADF Front Cover in the direction of the arrow.
Figure 1 j0lj45605
Replacement
1. To install, carry out the removal steps in reverse order.
To Next Page
