08/2012
5-40
WorkCentre 5021/5019
PL 17.1
Initial Issue
Parts List

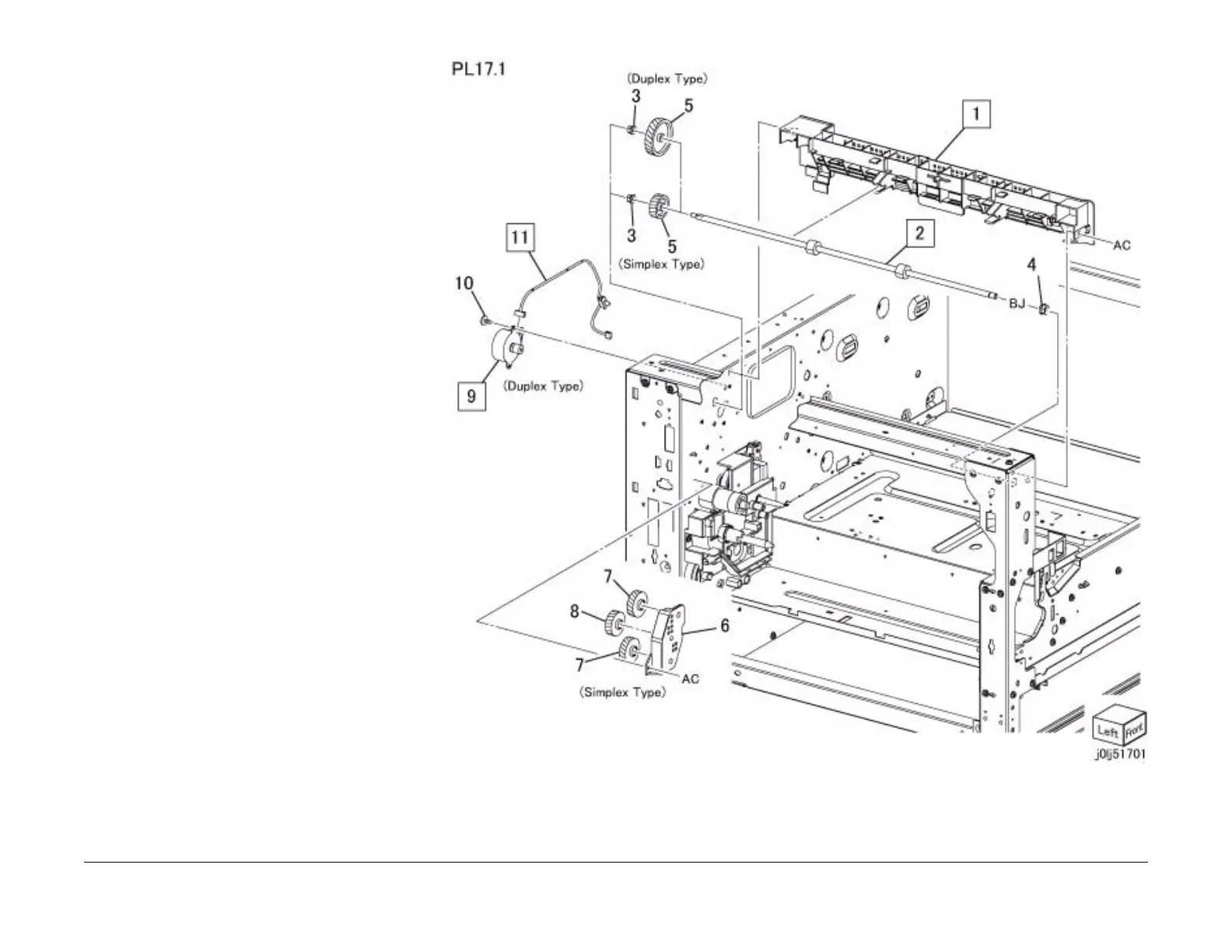

PL 17.1 Simplex/Duplex Exit
Item Parts No Description A.C.
1 848K 68380 Exit Cover (REP 17.1.1) 54B1
2 059K 74910 Exit Roll (REP 17.1.2) 5411
3 413W 14460 Bearing (d:4mm) 54B2
4 413W 11660 Bearing (d:6mm) 54B3
5 807E 39150 Helical Gear (Duplex) 54B4
– 807E 39120 Helical Gear (Simplex) 54B4
6 848E 83330 Gear Housing 54B5
7 807E 39130 Helical Gear (43T) 54B6
8 807E 39140 Helical Gear (41T) 54B7
9 127K 66210 Inverter Motor (REP 99.1.1)5251
10 – Bind Head Screw 54B8
11 952K 01160 Motor Wire Harness(REP 99.1.1)
54B9
