08/2012
5-10
WorkCentre 5021/5019
PL 1.4
Initial Issue
Parts List

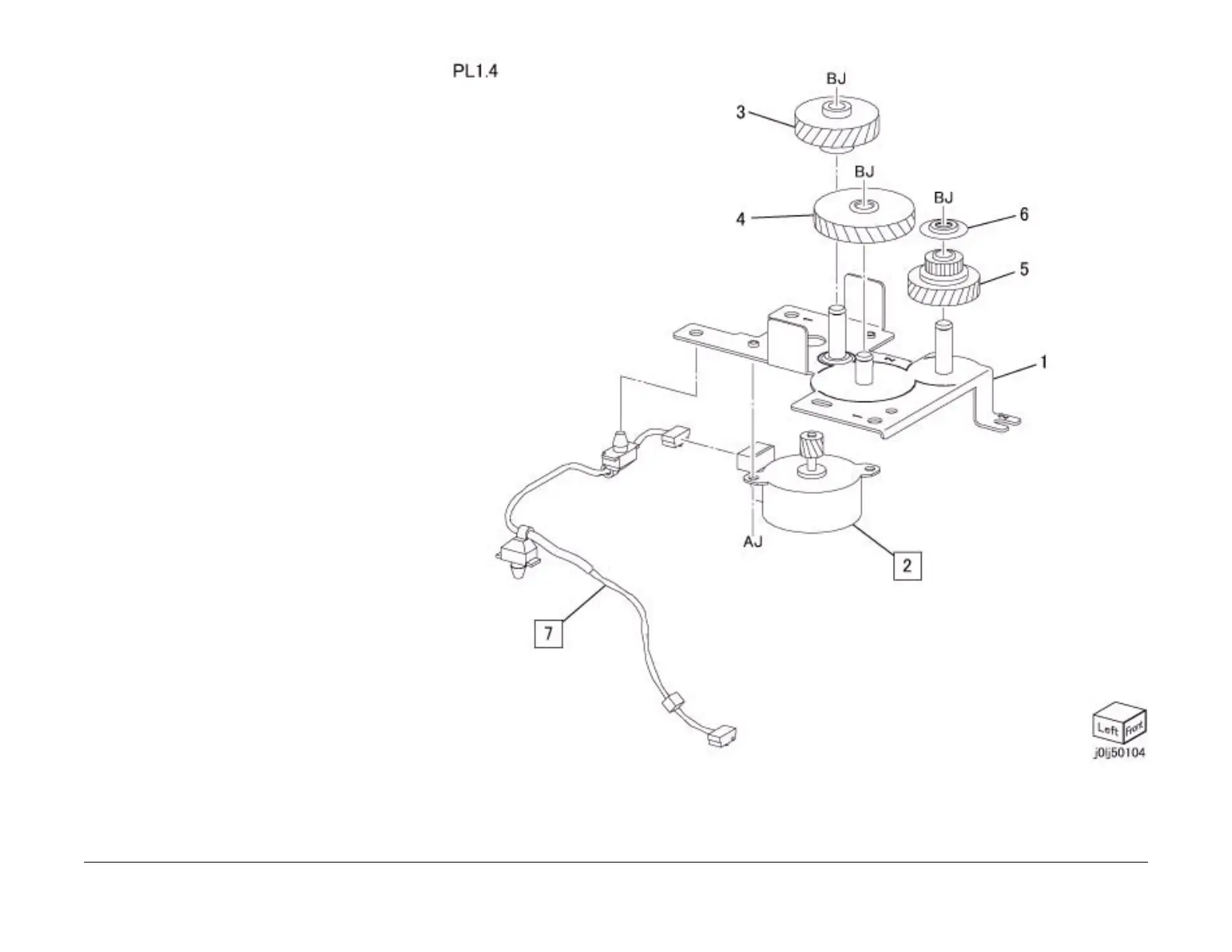

PL 1.4 Carriage Motor
Item Parts No Description A.C.
1 – Drive Bracket 11E1
2 127K 66721 Carriage Motor (REP 1.4.1, REP
99.1.1)1041
3 807E 40871 Helical Gear 11E2
4 807E 40880 Helical Gear 11E3
5 807E 40890 Gear Pulley 11E4
6 005E 33441 Flange 11E5
7 952K 03771 Motor Wire Harness (REP 99.1.1)
11E6
