08/2012
4-78
WorkCentre 5021/5019
REP 56.9.1, REP 56.9.2
Initial Issue
Repairs and Adjustments
Figure 4 j0lj45617
Replacement
1. To install, carry out the removal steps in reverse order.
REP 56.9.2 Retard Chute
Parts List on PL 56.9
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the DADF Front Cover. (REP 56.2.1)
2. Remove the DADF Rear Cover. (REP 56.2.2)
3. Remove the Document Tray. (REP 56.9.1)
4. Open the Retard Chute.
5. Remove the Retard Chute. (Figure 1)
(1) Remove the Retard Chute in the direction of the arrow.

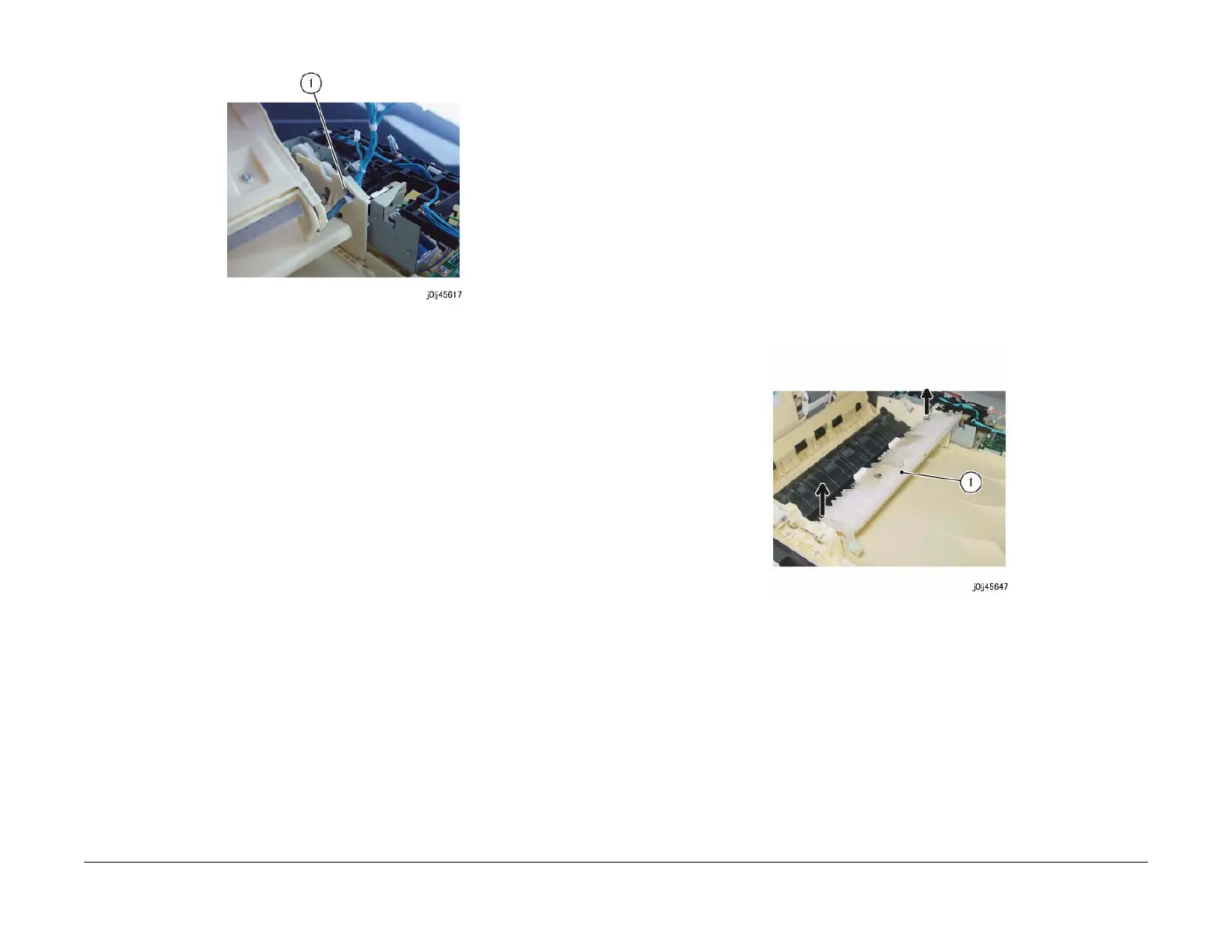

Figure 1 j0lj45647
