08/2012
5-25
WorkCentre 5021/5019
PL 10.2
Parts List
Initial Issue

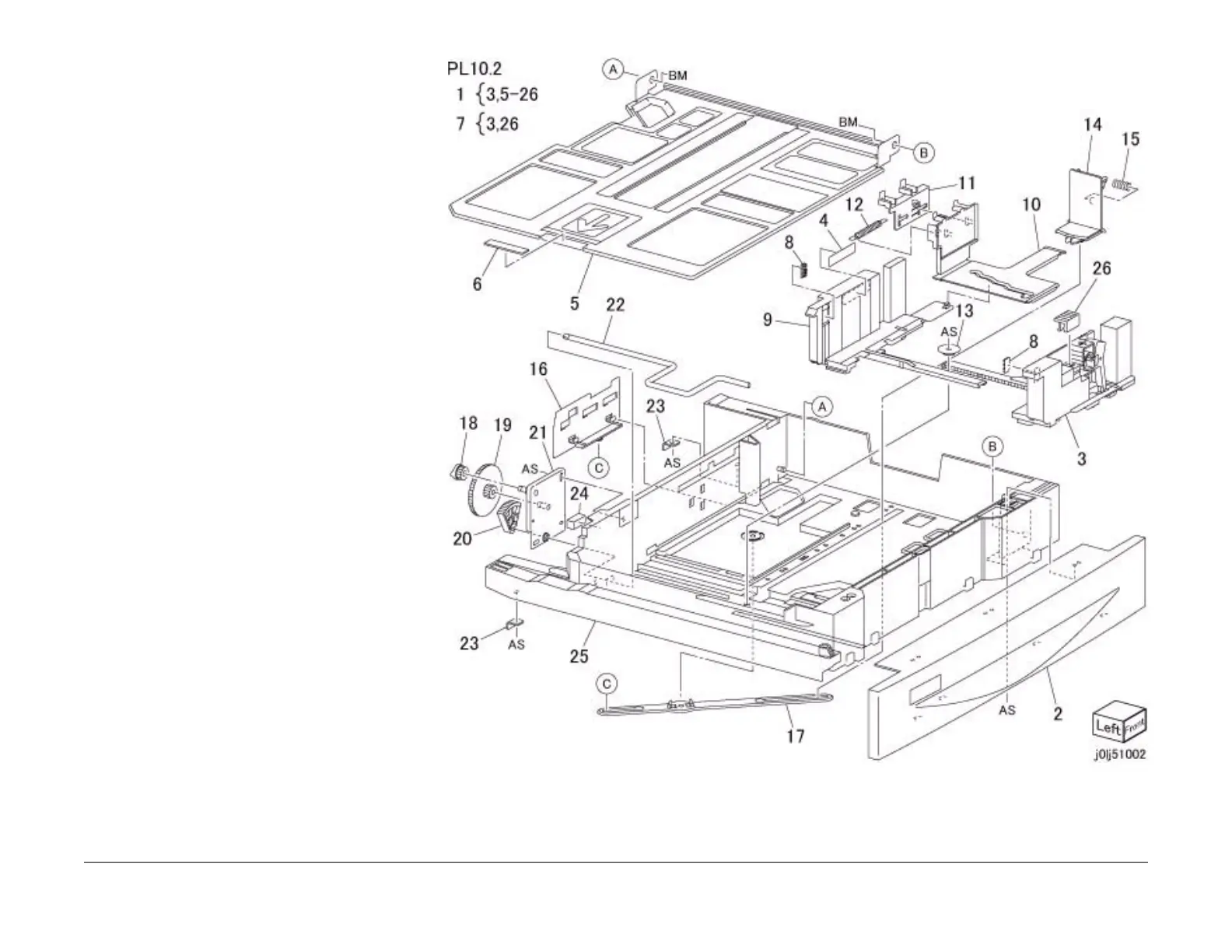

PL 10.2 Tray 2 Component
Item Parts No Description A.C.
1 – Tray 2 (Item 3,5-26) 50E1
2 802E 85381 Tray Cover 50E2
3 – Front Side Guide (P/O Item 7)50E3
4 893E 09490 Label (Max) 50E4
5 849E 06322 Bottom Plate 50E5
6 019K 07150 Bottom Pad 50E6
7 038K 87113 Front Side Guide Assembly (Item 3,
26)50E7
8 019E 71680 Tray Pad 50E8
9 038E 26550 Rear Side Guide 50E9
10 120E 22040 Side Guide Actuator 50EB
11 120E 22081 Guide Actuator 50EC
12 809E 41880 Spring 50ED
13 807E 13521 Pinion Gear 50EE
14 038E 26533 End Guide 50EF
15 809E 47091 Spring 50EG
16 120E 22051 End Guide Actuator 50EH
17 012E 11090 Link 50EJ
18 - Coupling Gear (13T) 50EK
19 - Gear (13T/60T) 50EL
20 - Sector Gear 50EM
21 – Bracket 50EN
22 – Lift Up Shaft 50EP
23 – Stopper 50EQ
24 – Seal 50ER
25 – Tray 50ES
26 – Slide Lock (P/O Item 7) 50ET
27 604K20541 Gear Kit (Contains 1 each of items
18, 19, 20)
To Next Page
