08/2012
5-17
WorkCentre 5021/5019
PL 6.1
Parts List
Initial Issue

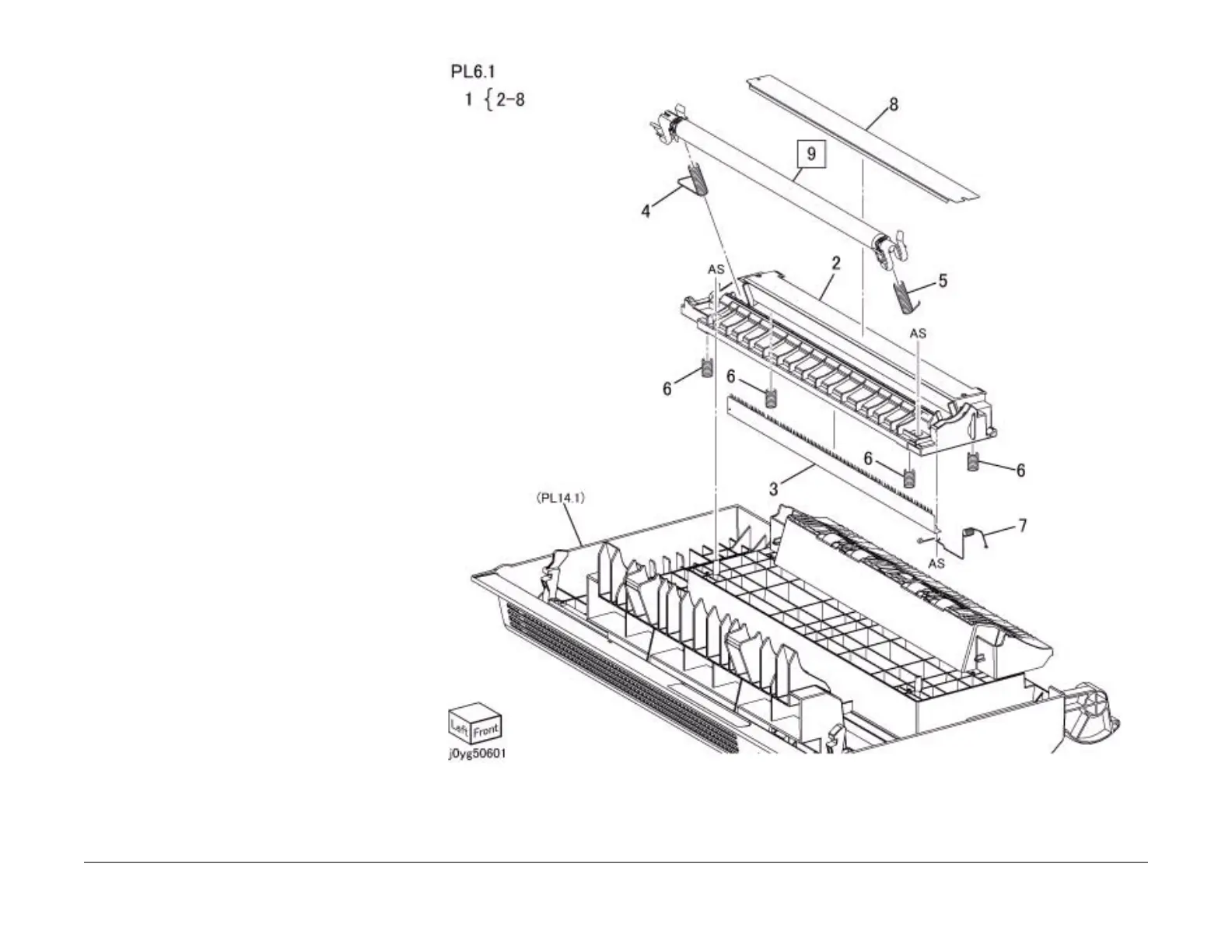

PL 6.1 Transfer
Item Parts No Description A.C.
1 054K 48390 BTR Chute (Item 2-8) 41B1
2 – BTR Chute (P/O Item 1) 41B2
3 – DTS Eliminator (P/O Item 1)41B3
4 809E 99860 BTR Spring (Rear) 41B4
5 809E 99870 BTR Spring (Front) 41B5
6 – Float Spring (P/O Item 1) 41B6
7 – DTS Conductor (P/O Item 1)41B7
8 – Film Chute (P/O Item 1) 41B8
9 059K 79560 BTR Roll (REP 6.1.1) 4101
