Xerox WorkCentre 5021 Service Documentation

08/2012
5-41
WorkCentre 5021/5019
PL 18.1
Parts List
Initial Issue

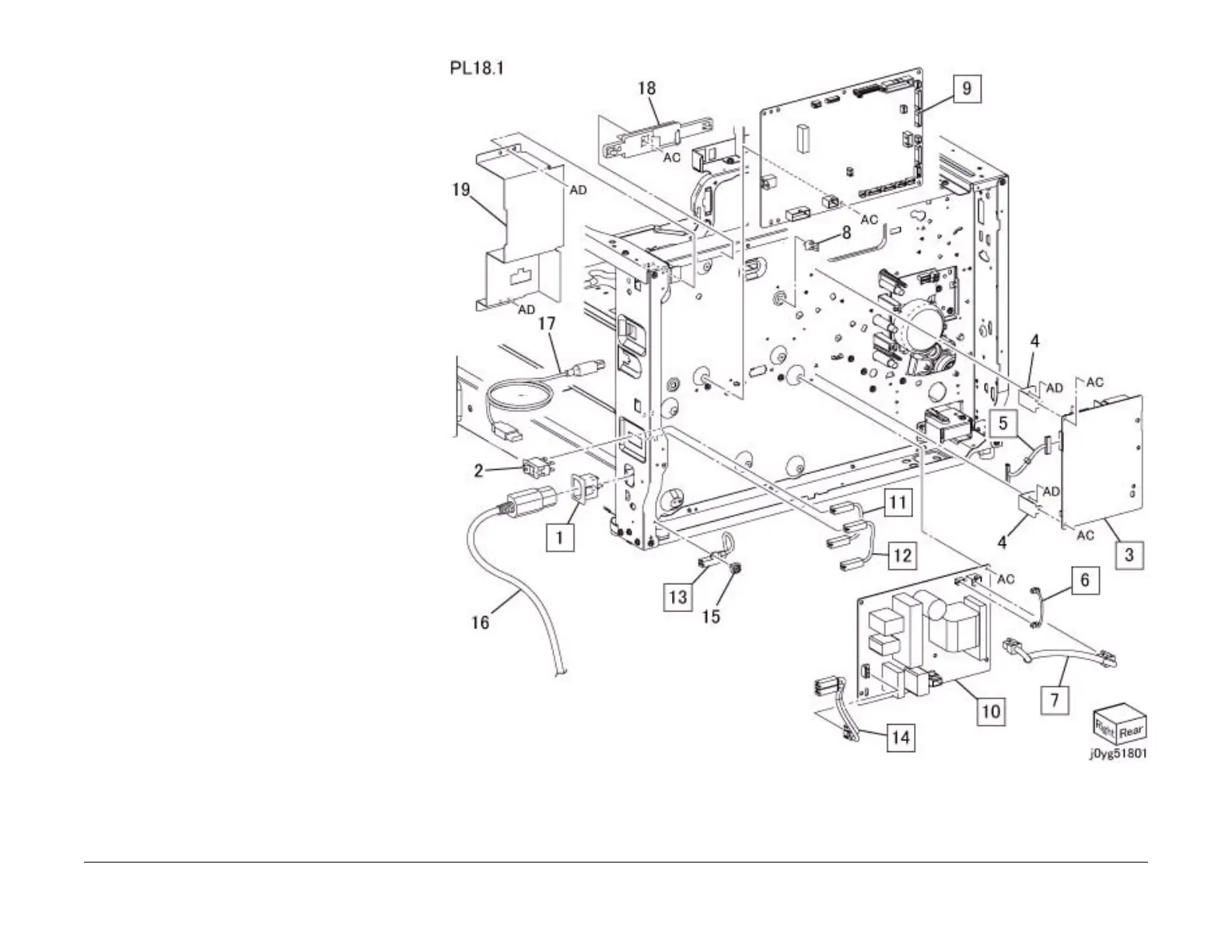

PL 18.1 Electrical
Item Parts No Description A.C.
1 913W 02321 AC Inlet (REP 99.1.1) 72B1
2 910W 00703 Main Power Switch 72B2
3 105E 20470 HVPS (REP 18.1.2, REP 99.1.1)
7320
4 – HVPS Bracket 72B3
5 952K 01140 HVPS Wire Harness(REP 99.1.1)
72B4
6 952K 01190 LVPS Wire Harness (Signal) (REP
99.1.1)72B5
7 952K 01200 LVPS Wire Harness (Power) (REP
99.1.1)72B6
8 120E 34060 PWB Support 72B7
9 960K 67870 ESS/MCU PWB (REP 18.1.1, REP
99.1.1)7610
10 105E 20480 220V-LVPS (REP 18.1.3)7310
– 105E 21070 120V-LVPS (REP 18.1.3)7310
11 117K 47570 220V-Inlet Wire Harness
(Connector Color : Black) (REP
99.1.1)72B8
– 117K 47810 120V-Inlet Wire Harness
(Connector Color : Black) (REP
99.1.1)72B8
12 117K 47580 220V-Inlet Wire Harness
(Connector Color : White) (REP
99.1.1)72B9
– 117K 47820 120V-Inlet Wire Harness
(Connector Color : White) (REP
99.1.1)72B9
13 117K 47611 220V-Ground Wire (REP 99.1.1)
72BB
– 117K 47830 120V-Ground Wire (REP 99.1.1)
72BB
14 952K 01230 220V-Power Switch Wire Harness
(REP 99.1.1)72BC
– 962K 69080 120V-Power Switch Wire Harness
(REP 99.1.1)72BC
15 – Screw 72BD
16 – Power Cord (220V) 7122
– – Power Cord (120V) 7122
17 – USB Cable 72BE
18 – IIT Cable Spacer 72BF
19 101K 66581 Connector Bracket 72BG
