08/2012
5-46
WorkCentre 5021/5019
PL 56.2
Initial Issue
Parts List

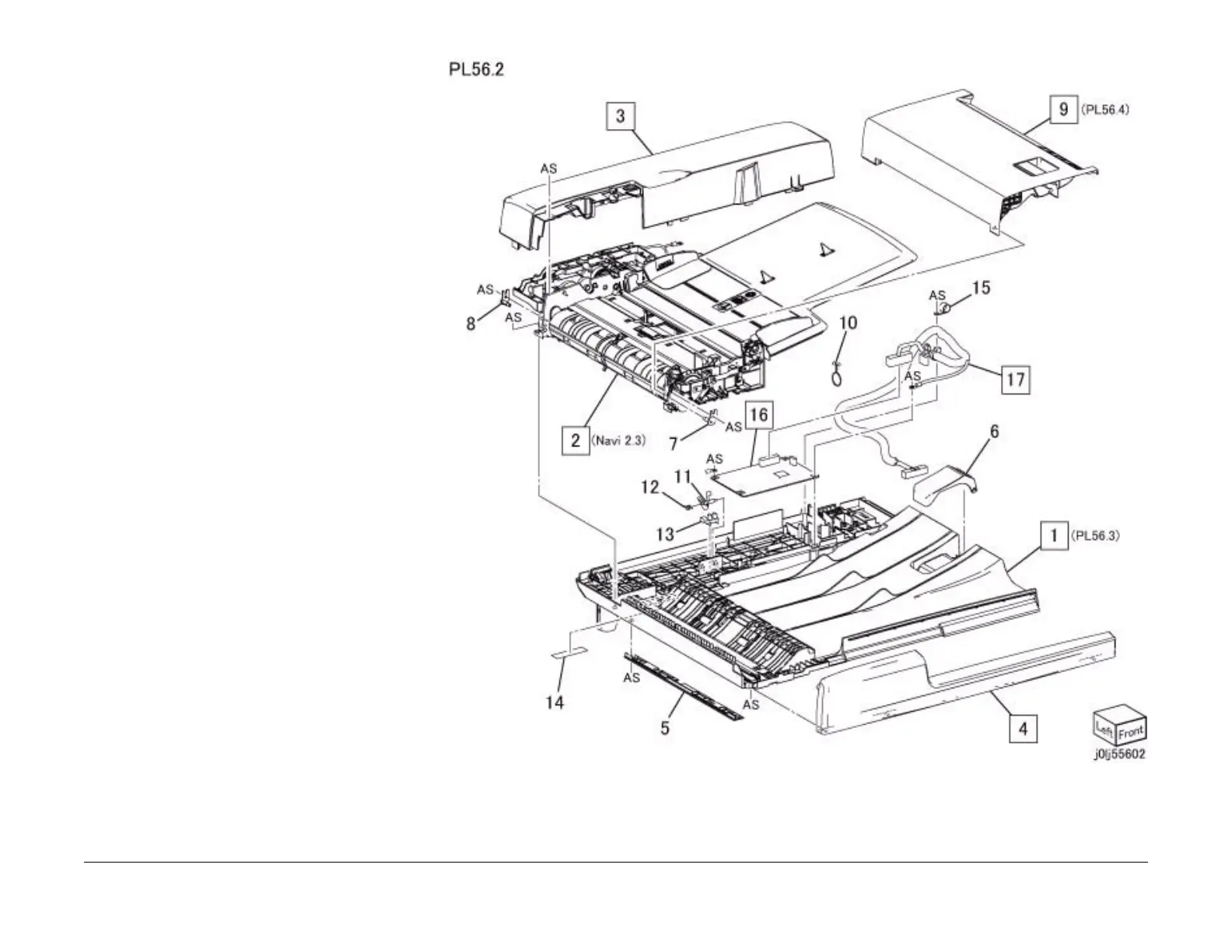

PL 56.2 DADF Component
Item Parts No Description A.C.
1 – DADF Base Frame (PL 56.3)(REP
99.1.1)22C1
2 059K 75730 DADF Feeder Assembly (Navi 2.3)
(REP 56.2.5, REP 99.1.1)22C2
3 848E 86411 DADF Rear Cover (REP 56.2.2)
22C3
4 848E 86430 DADF Front Cover (REP 56.2.1)
22C4
5 848E 86450 Registration Pinch Cover 22C5
6 803E 13310 Tray Stopper 22C6
7 068K 67551 Hinge Bracket (Front) 22C7
8 049K 17810 Hinge Bracket (Rear) 22C8
9 059K 75750 Upper Feeder (PL 56.4) (REP
56.2.4)22C9
10 – Clamp 22CB
11 120E 34270 Actuator 22CC
12 809E 50792 Spring 22CD
13 930W 00121 DADF Open Sensor 22CE
14 – Data Plate 22CF
15 – Clamp 22CG
16 960K 62441 DADF PWB (REP 56.2.3, REP
99.1.1)22CH
17 952K 03540 DADF I/F Wire Harness(REP
99.1.1)22CJ
To Next Page
